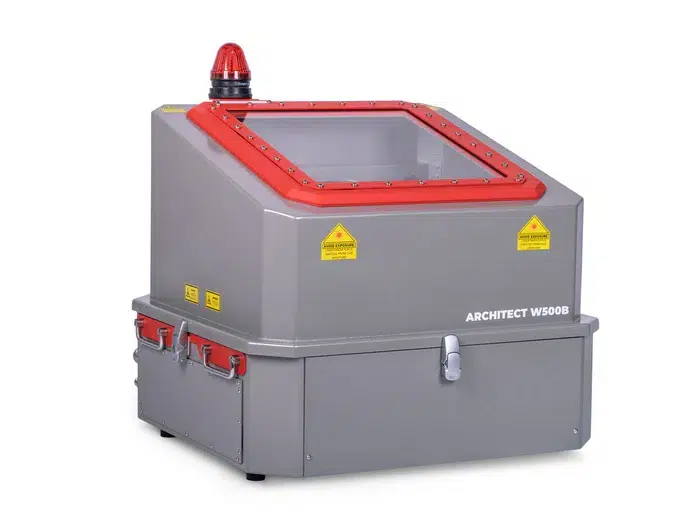

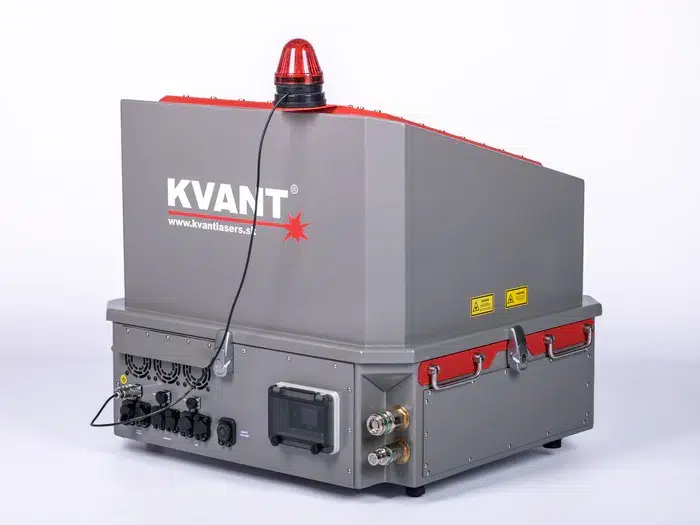

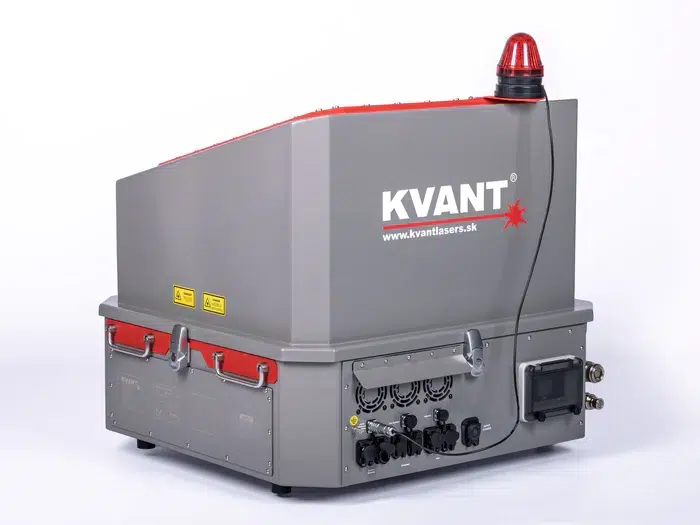

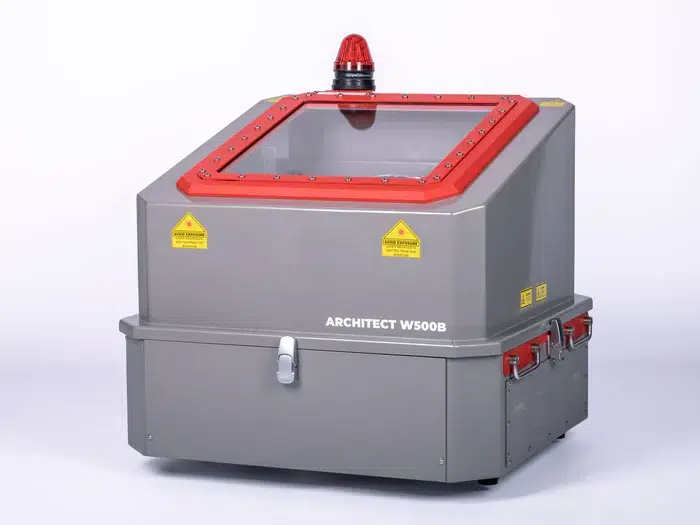

Architect W500B

Compartir

Descripción

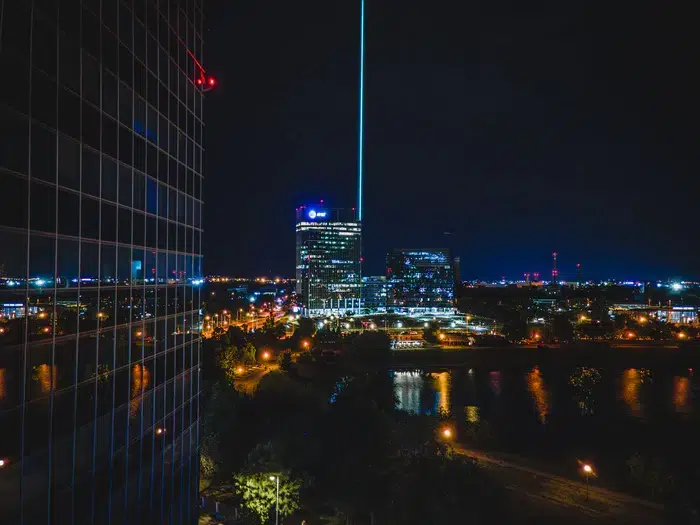

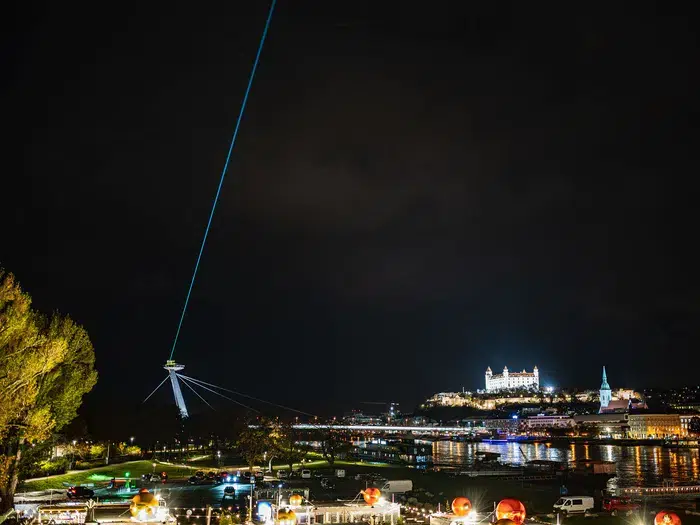

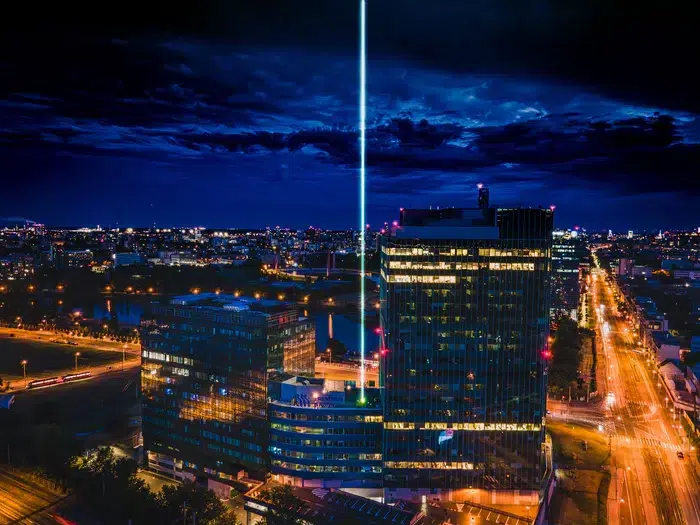

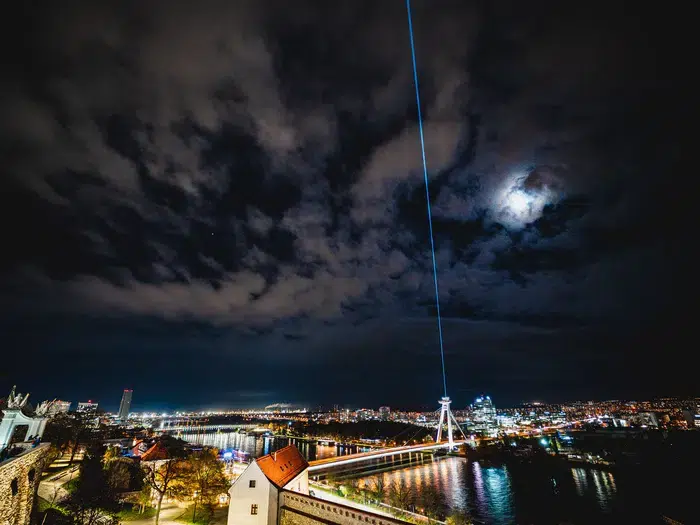

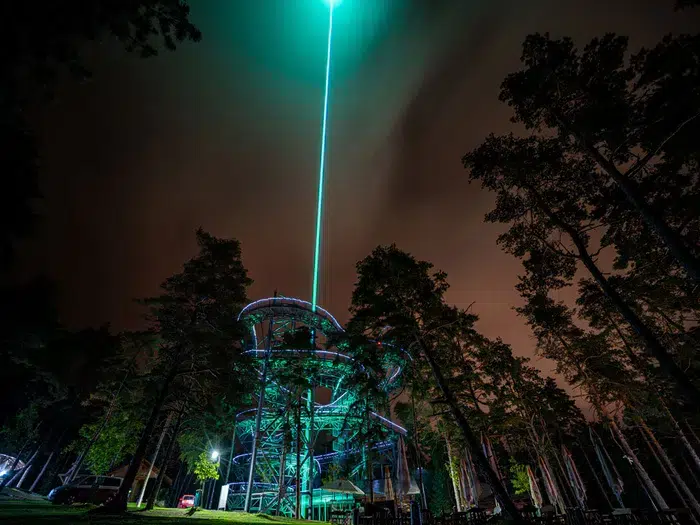

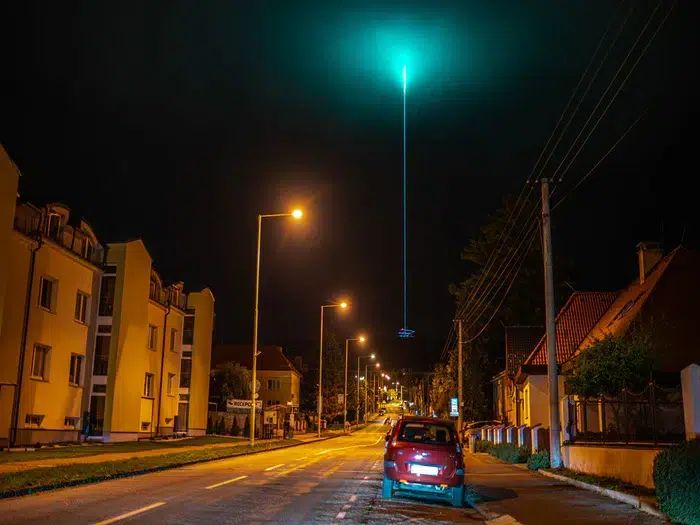

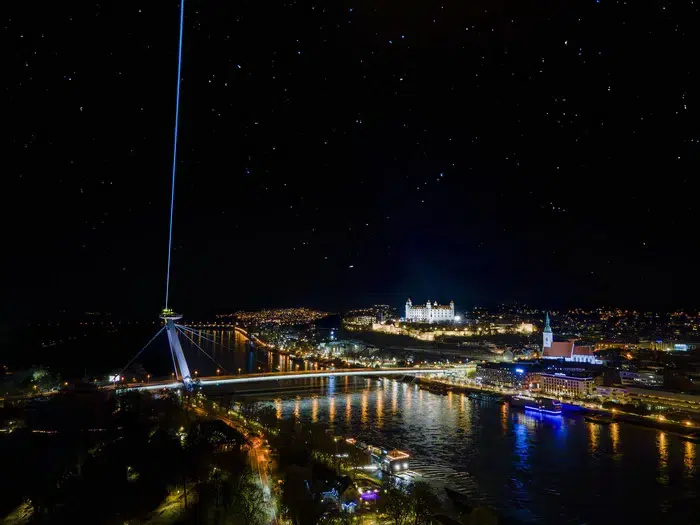

La segunda generación de láseres estáticos de alta potencia Architect (a menudo llamados sky lasers o landmark lasers) es nuestra respuesta al creciente interés global por láseres ultrabrillantes. Son ideales para destacar monumentos, estructuras y edificios emblemáticos.El haz de luz emitido por los sistemas Architect atrae la atención desde muchos kilómetros de distancia. Aporta una sensación de grandeza y espectacularidad a elementos ya majestuosos, sean de origen natural o humano, haciéndolos aún más únicos, impactantes y atractivos.La plataforma opcional de alta resistencia con control DMX permite un movimiento de 350 grados en panorámica (pan) y 126 grados en inclinación (tilt) de toda la unidad Architect, lo que permite mover y escanear el haz de luz por el cielo con gran precisión.

NO BORRAR, aqui van los estilos del acordeon

Source | IP-rating | Type:

Semiconductor laser diode | IP65 | Full-colour RGB sky laser

Suitability:

Architectural installations | Landmark and Sky illumination

System control:

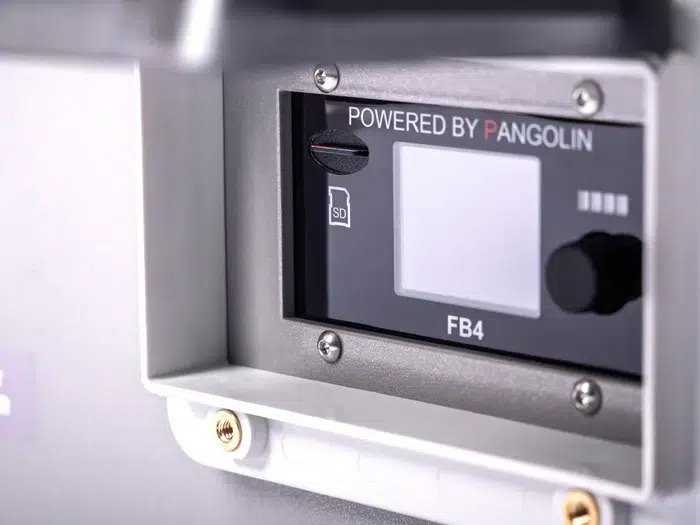

FB4 [ArtNet, DMX] / Manual via supplied remote control box | Dimming 100-0%

Compliant with:

EN 60825-1

Weight [kg]:

80 [laser projector]
46 [chiller]

Size [WxHxD, mm]:

640 x 574 x 682 [laser projector]
686 x 399 x 483 [chiller]

Guaranteed opt. output

486 watts

Installed modules R | G | B [W]:

152 | 188 | 146

Wavelengths [nm, ±5nm]:

637 | 525 | 465

Beam size [mm]:

400 x 400

Beam divergence [mrad]:

3.4 [full angle, averaged value]

X-Y scanners:

Single beam output | Pan & tilt possible with the optional DMX platform

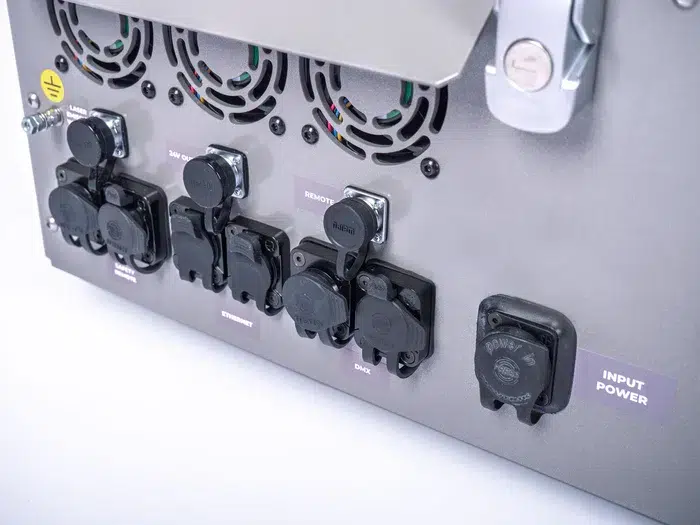

Power requirements [V] | Input:

100-240/50-60Hz | Neutrik powerCON TRUE1 [laser projector]
200-230/50-60Hz [chiller]

Max. power consumption [VA]:

< 2,000 W [laser projector]
< 1,600 W [chiller]

Operation temperature [°C]:

5-40 [full power output at 5-35]

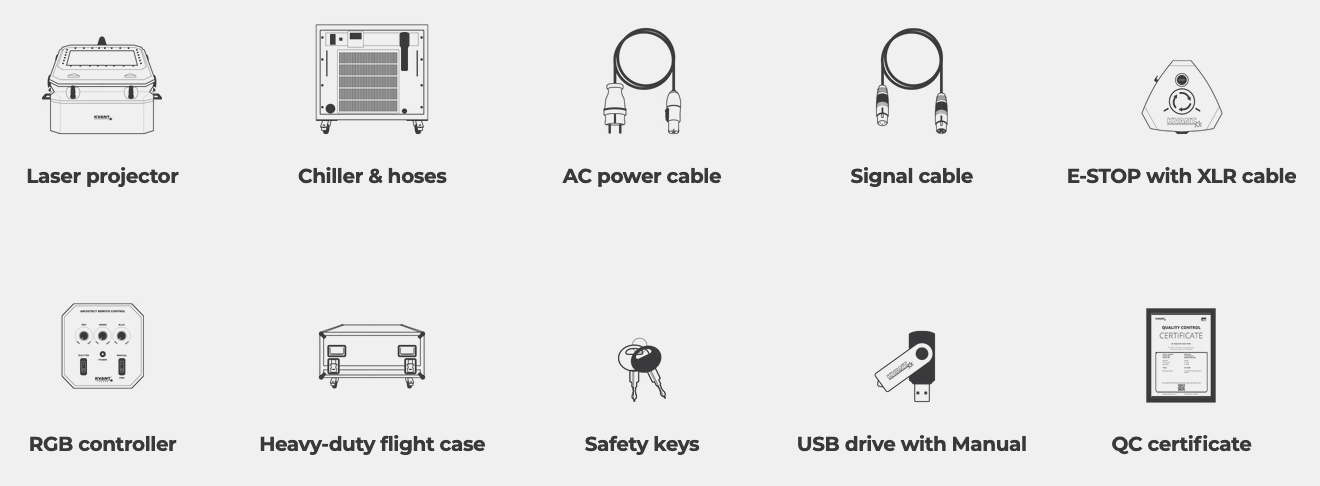

Included in the set:

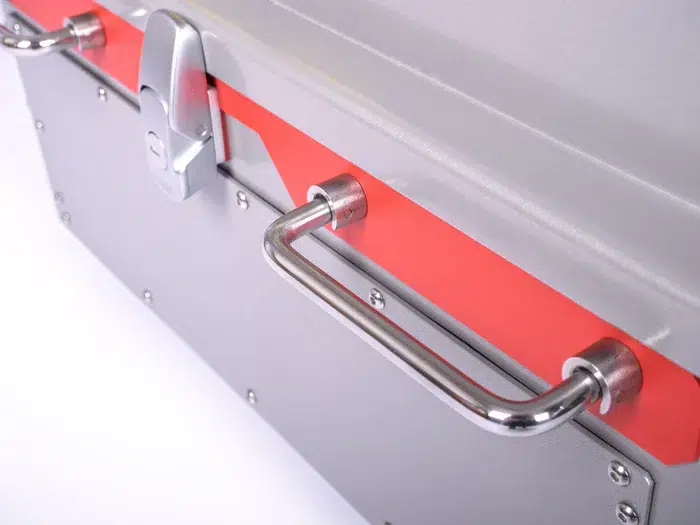

Chiller, 10M Water supply hoses, 2x Heavy-duty flight case, 10M AC power cable, 10M Control signal cable, 0-5 Volt RGB controller, E-STOP Remote with 10M 3-pin XLR cable, Set of 2 safety keys, USB memory stick with the user manual, QC certificate.

HW features:

Laser safety features:

Emission warning beacon, emission delay, magnetic interlock, electronic shutter, Emergency STOP system with keyed remote and manual RESTART button.

note A

note B

Luminous flux [lm]:

130,200

Coolant:

Water + 15% glycol, 6-10 l/min, 20°C

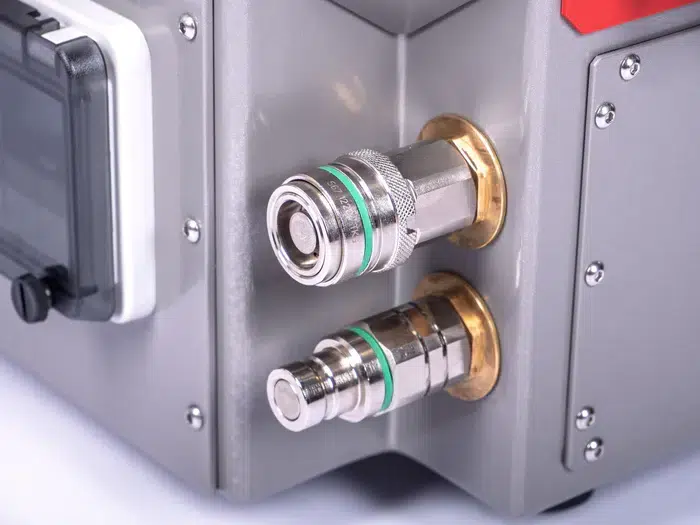

Hose fittings:

CEJN series 567
