Atom 58

Kvant

Descripción

Robustos y potentes, diseñados con precisión y sofisticación.Los Atom están equilibrados en prácticamente todos los aspectos, incluida su relación coste-rendimiento.Las unidades Atom están estructuralmente diseñadas de la misma forma que nuestros reconocidos Spectrum, utilizando el mismo material innovador de aluminio espumado para el chasis, aunque con algunas diferencias que permiten ofrecer un precio más económico.La última generación de Atom es un sistema láser full color, finamente construido, basado en diodos semiconductores FAC, que proporciona una potente salida, haz uniforme, colores nítidos y avanzadas opciones de control y conectividad.Los Atom emiten haces con una divergencia inigualable, manteniendo al mismo tiempo la potencia garantizada en todo el rango de escaneo. Esto es algo realmente único que muy pocos fabricantes pueden asegurar.Nuestros Atom ya han demostrado su potencial en aplicaciones que requieren alta potencia, manteniendo al mismo tiempo un precio de venta razonable.

NO BORRAR, aqui van los estilos del acordeon

Especificaciones

Source | IP-rating | Type:

Semiconductor laser diode | IP65 | Full-colour RGB laser projector

Suitability:

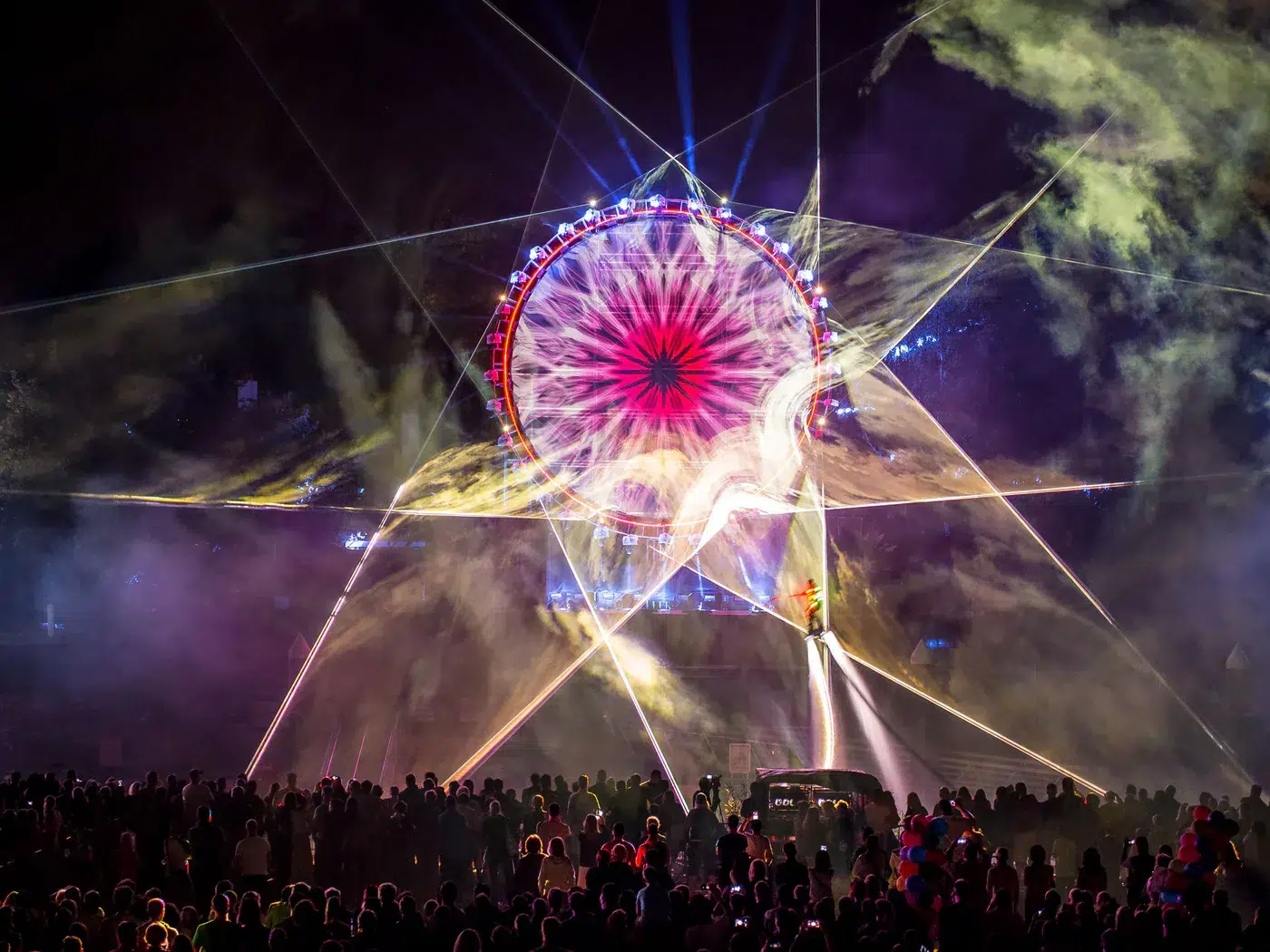

Outdoor laser displays [atmospheric, abstract, text, animations]

System control:

FB4-SK [Ethernet, ArtNet, DMX, ILDA | PC, Lighting Console or Autoplay]

Compliant with:

EN 60825-2

Weight [kg]:

Size [WxHxD, mm]:

491 x 310 x 396

Guaranteed opt. output

54.3 watts

Installed modules R | G | B [W]:

11.5 | 17 | 30 *note A

Wavelengths [nm, ±5nm]:

638 | 525 | 455

Beam size [mm]:

9 x 7

Beam divergence [mrad]:

1.1 mrad [full angle, **note]

Analogue modulation [kHz]

100

X-Y scanners:

Saturn9 | 30 kpps @ 8°, max. scanning angle 40° on both axes

Power requirements [V] | Input:

100-240/50-60Hz | Neutrik powerCON TRUE1

Max. power consumption [VA]:

1200

Operation temperature [°C]:

10-35 [-20 to +35 when installed in Monsoon protection enclosure with AC unit]

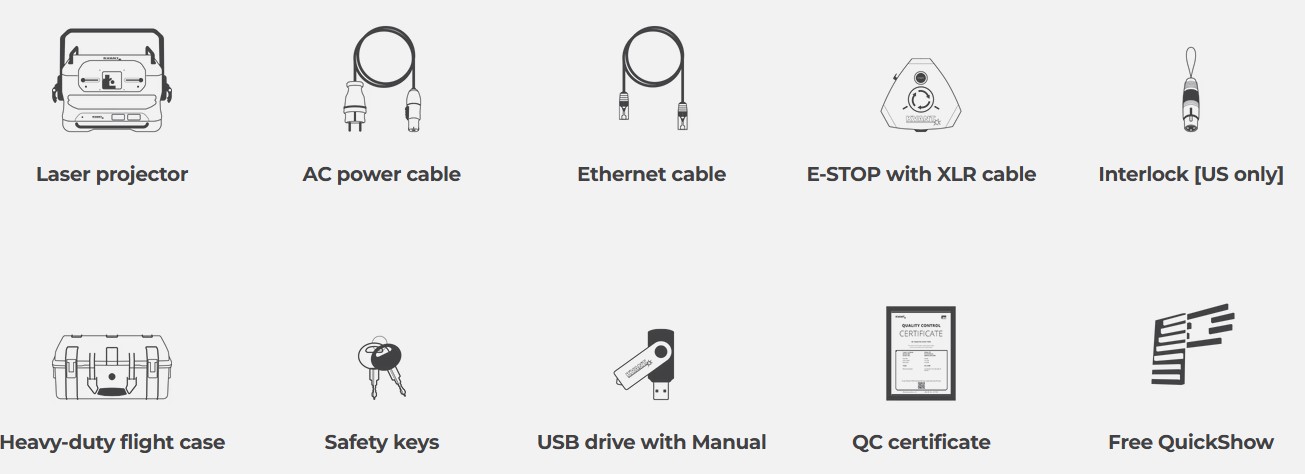

Included in the set:

Heavy-duty flight case, 1.5M AC power cable, 25M Ethernet rj45 signal cable, E-STOP Remote with 25M 3-pin XLR cable, Set of 4 safety keys, Interlock bypass dongle [supplied for the USA only], USB memory stick with the user manual, QC certificate.
Pangolin QuickShow laser control and creation software is available for FREE download.

HW features:

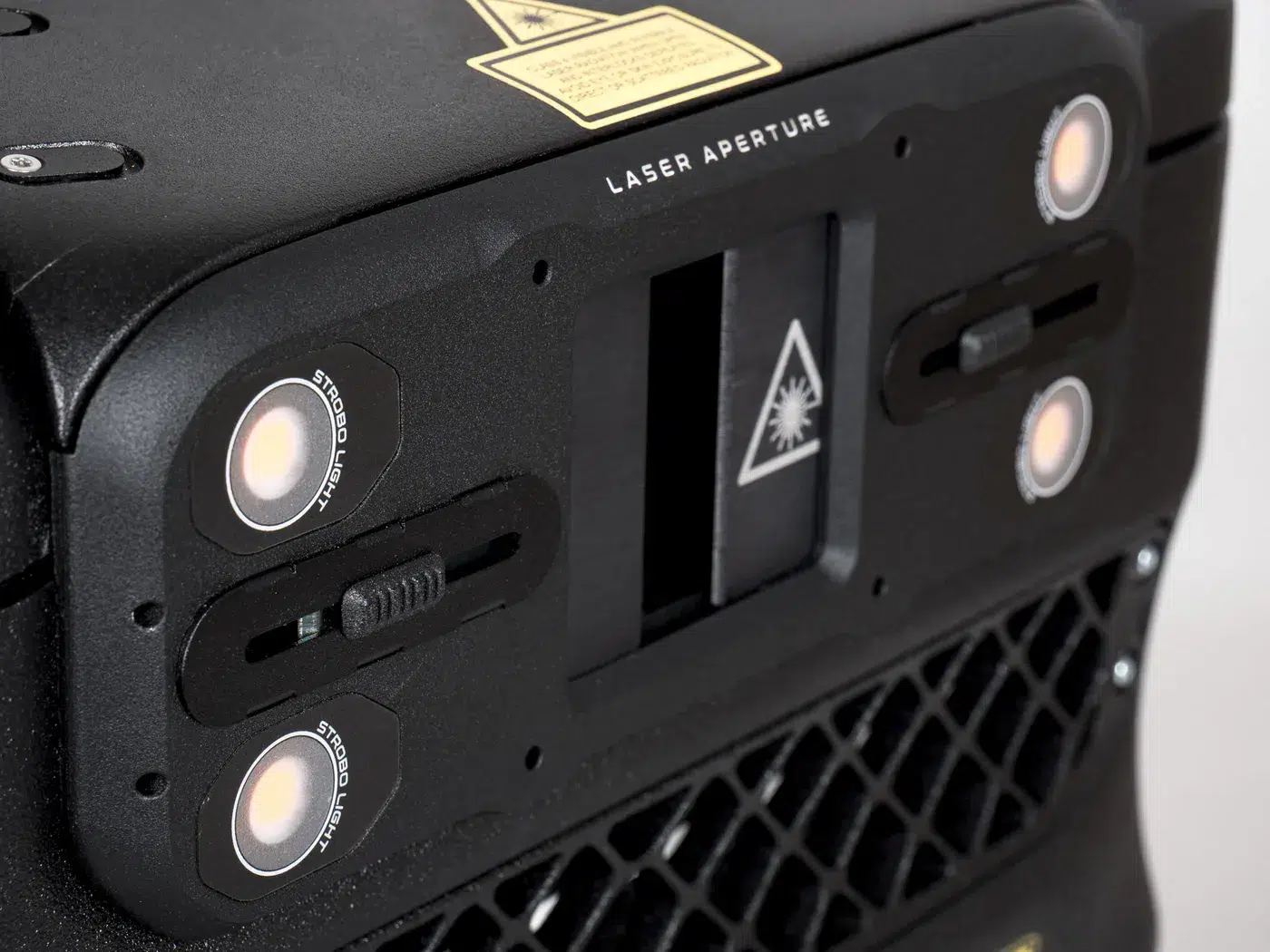

DMX-controlled LED blinder / Device Visual Identifier (4x 5-watt LED, 4000K, each diode is controlled separately)

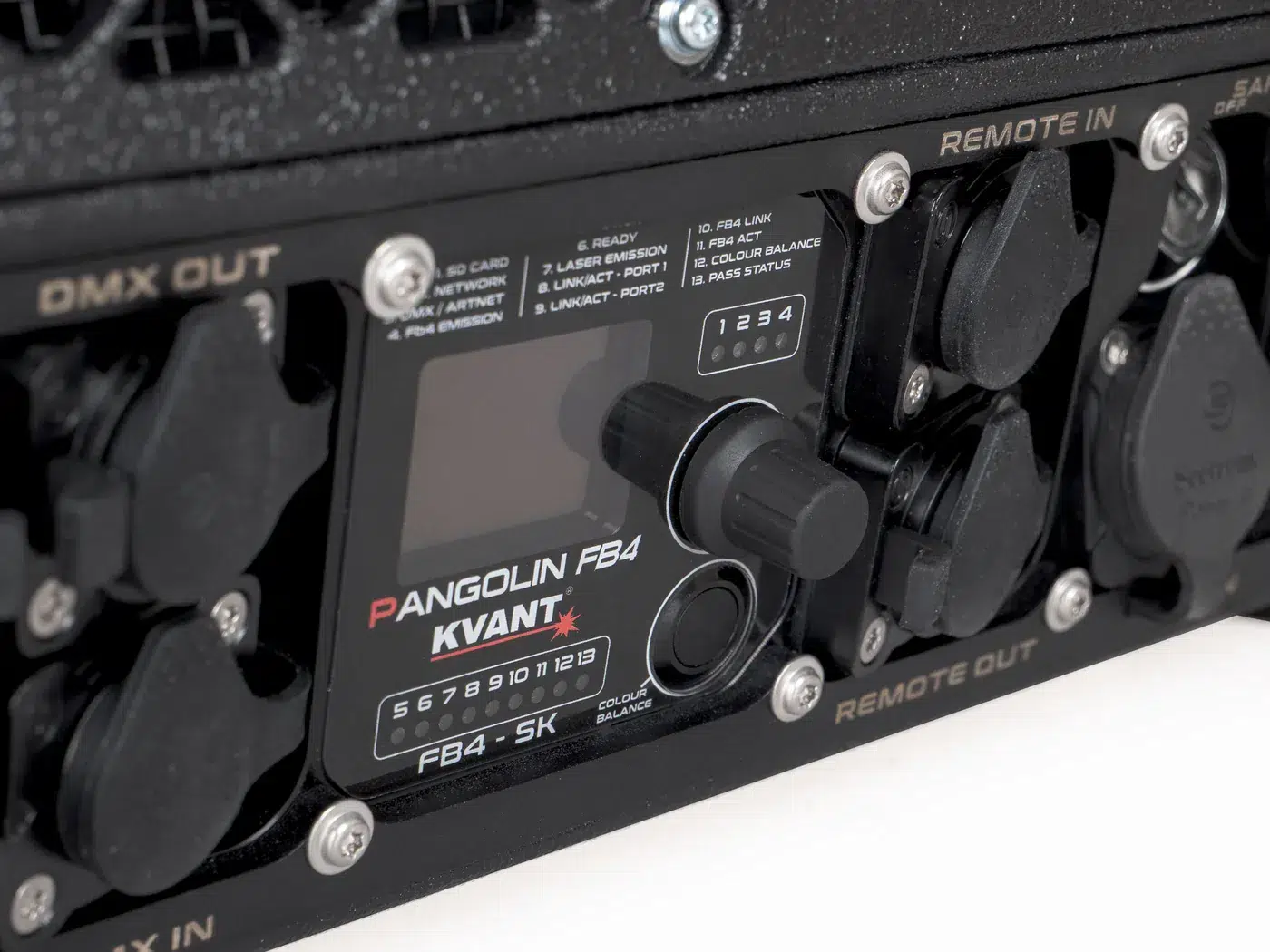

All the basic system settings and adjustments, such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc., are managed via the built-in FB4 control interface.
Scanning system overload protection.
Colour Balance display mode.

Laser safety features:

Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button.

note A

Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn’t affect the total guaranteed power output of the system.

note B

The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as:
1. FWHM of the beam cross-section for round beams, or
2. The arithmetic average of the beam’s horizontal and vertical divergence for all rectangular beams.

Incluido en el pack
