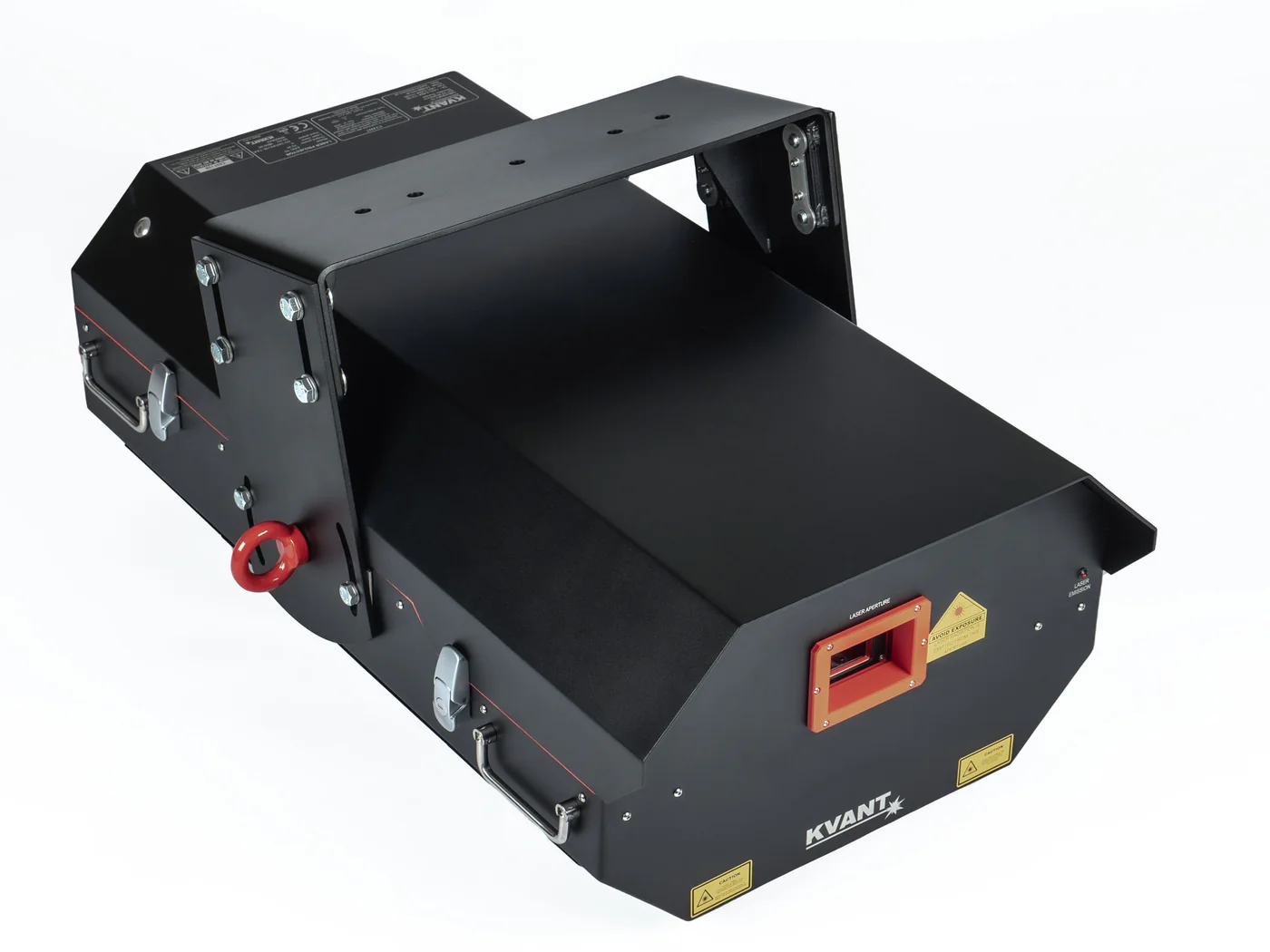

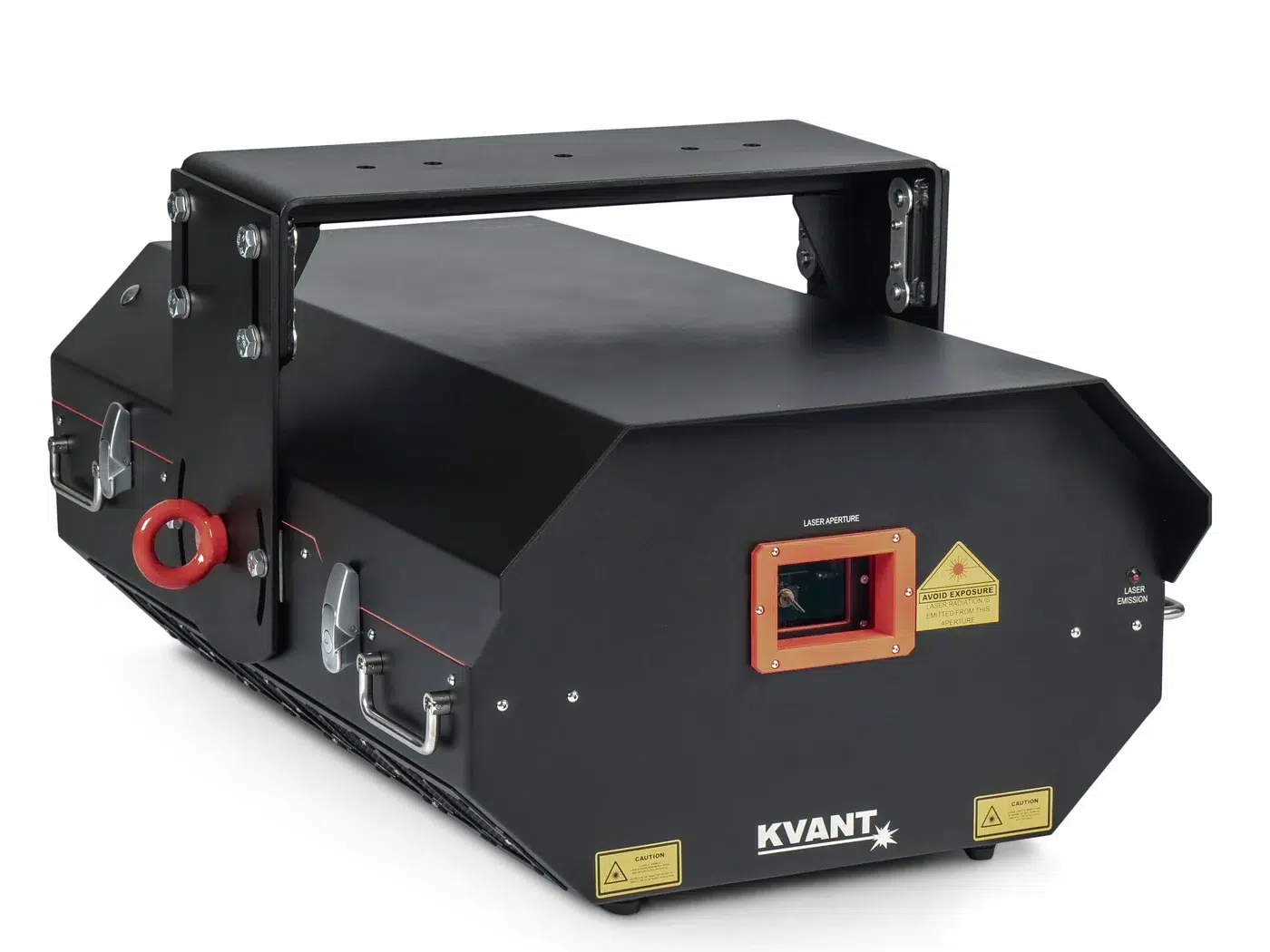

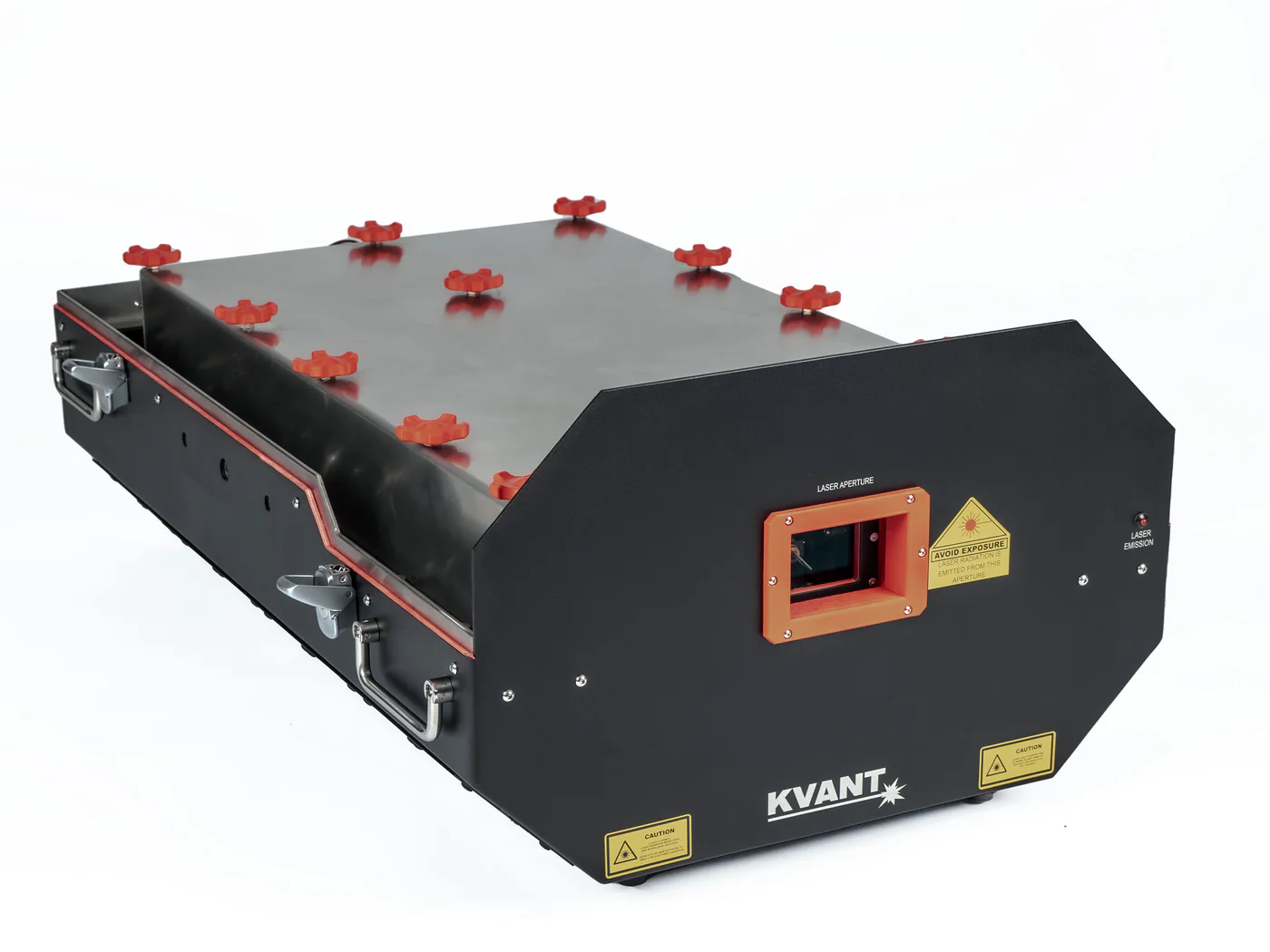

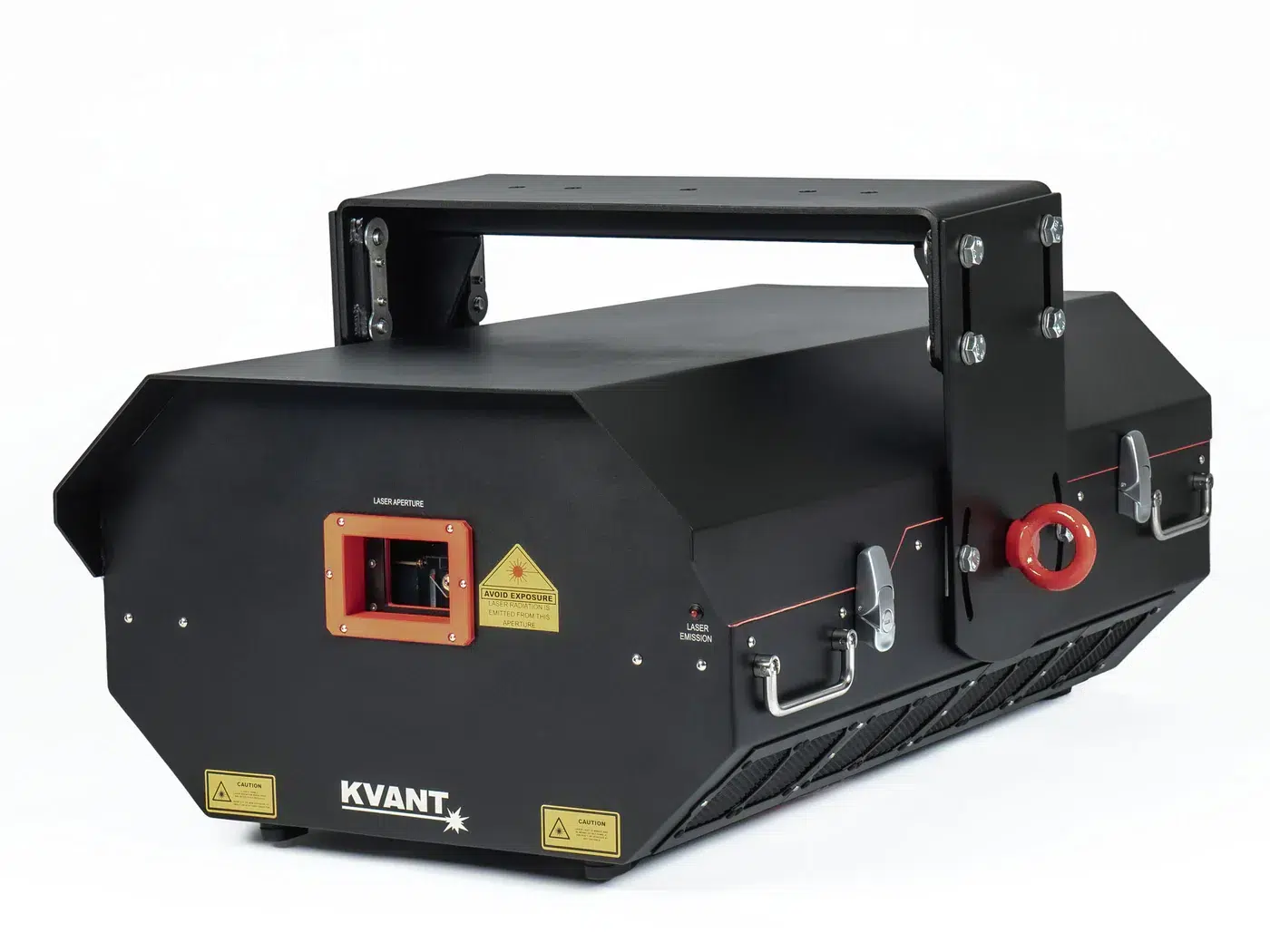

Source | IP-rating | Type:

Semiconductor laser diode | IP65 | Full-colour RGB laser projector

Suitability:

Large-scale outdoor laser displays [atmospheric, basic graphics]

System control:

FB4-SK [Ethernet, ArtNet | PC, Lighting Console or Autoplay]

Compliant with:

EN 60825-1

Weight [kg]:

89 [laser projector]
46 [chiller]

Size [WxHxD, mm]:

500 x 315 x 876

Guaranteed opt. output

240 watts

Installed modules R | G | B [W]:

30 | 60 | 180 *note A

Wavelengths [nm, ±5nm]:

638 | 525 | 465+455

Beam size [mm]:

10 x 12

Beam divergence [mrad]:

1.1 [full angle, averaged value, *note B]

Analogue modulation [kHz]

100

X-Y scanners:

17 kpps @ 8°, max. scanning angle 40° on both axes

Power requirements [V] | Input:

100-240/50-60Hz | Neutrik powerCON TRUE1 [laser projector]
200-230/50-60Hz [chiller]

Max. power consumption [VA]:

< 1,800 W [laser projector]
< 1,600 W [chiller]

Operation temperature [°C]:

5-40

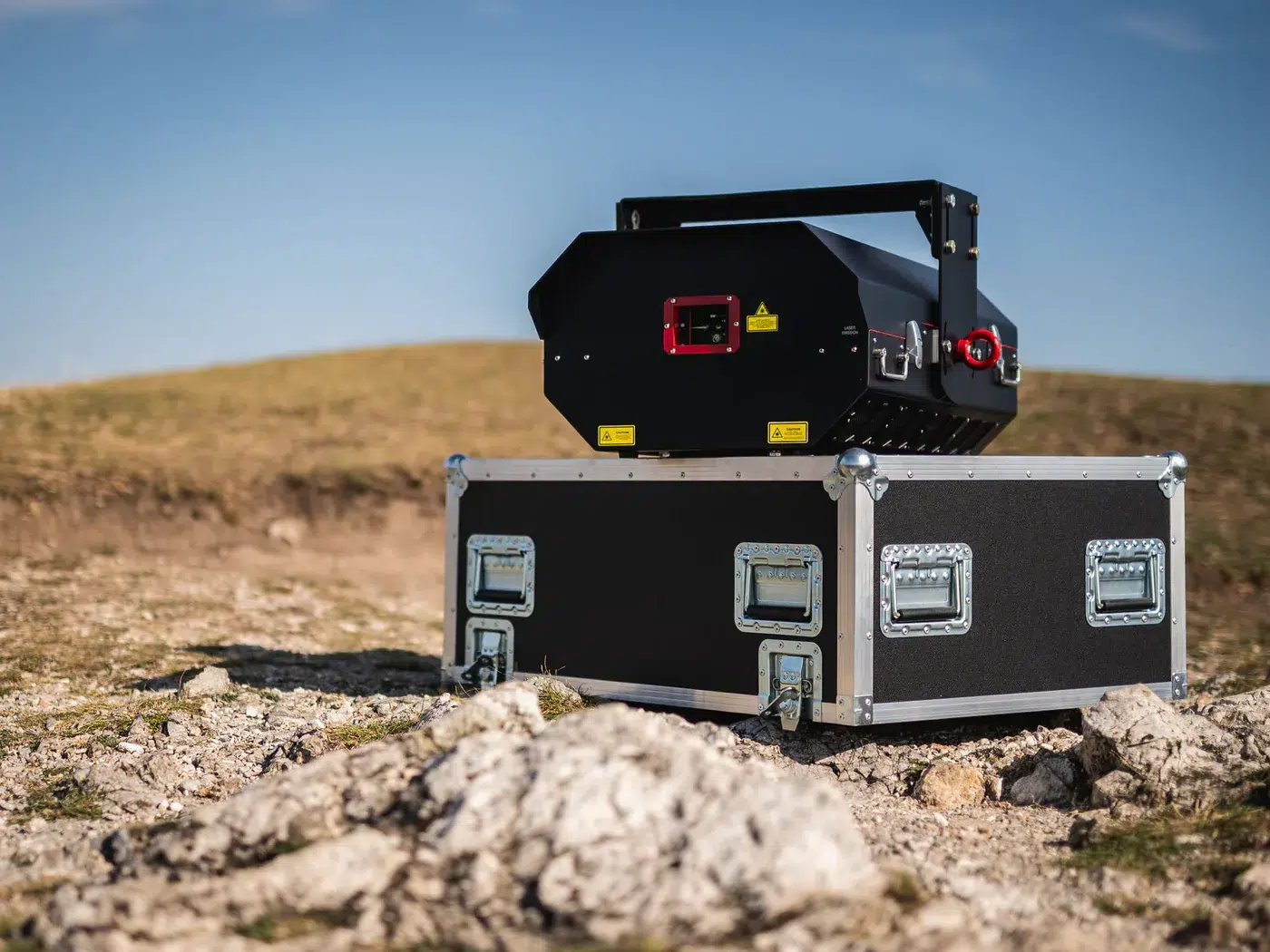

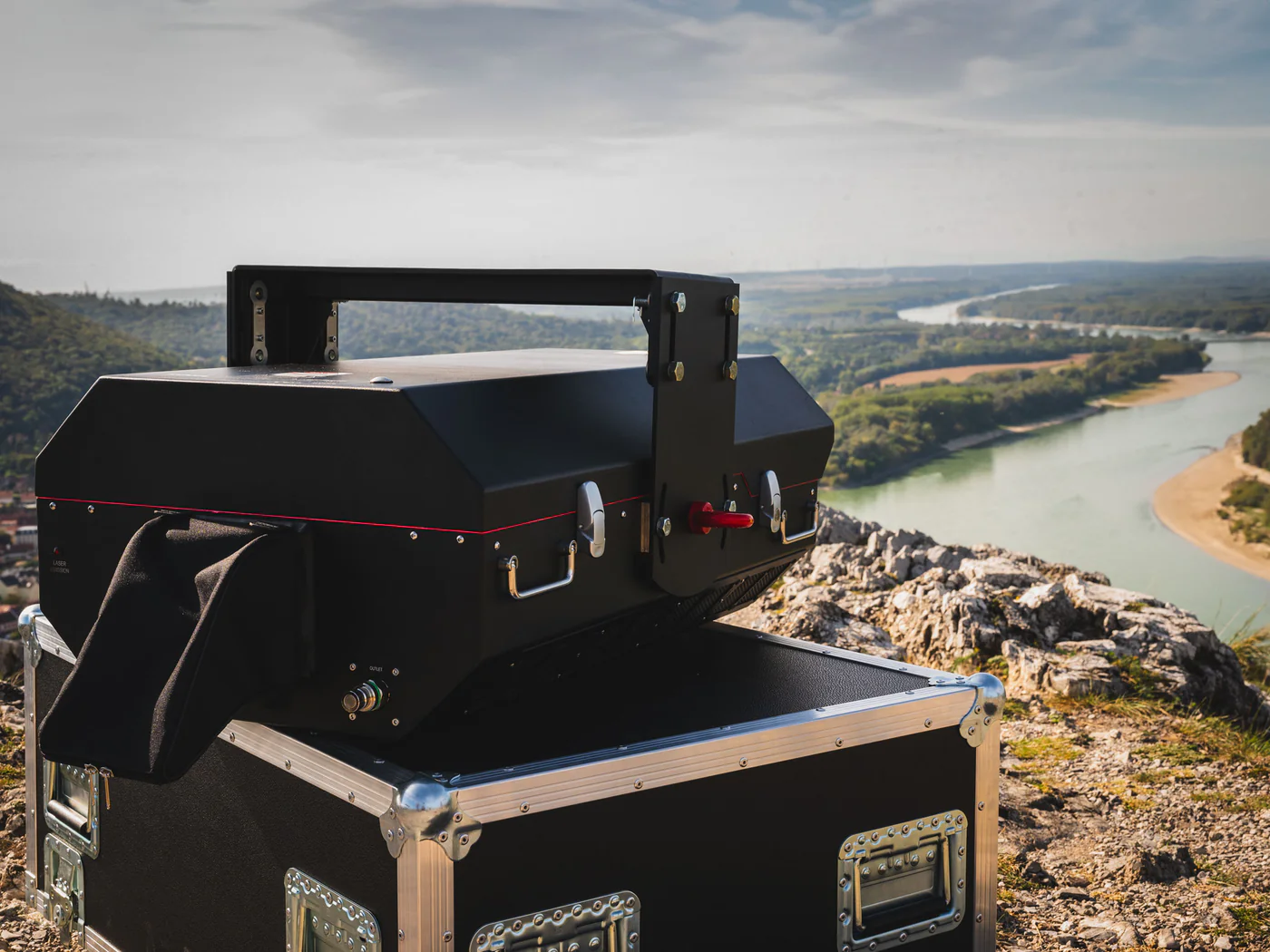

Included in the set:

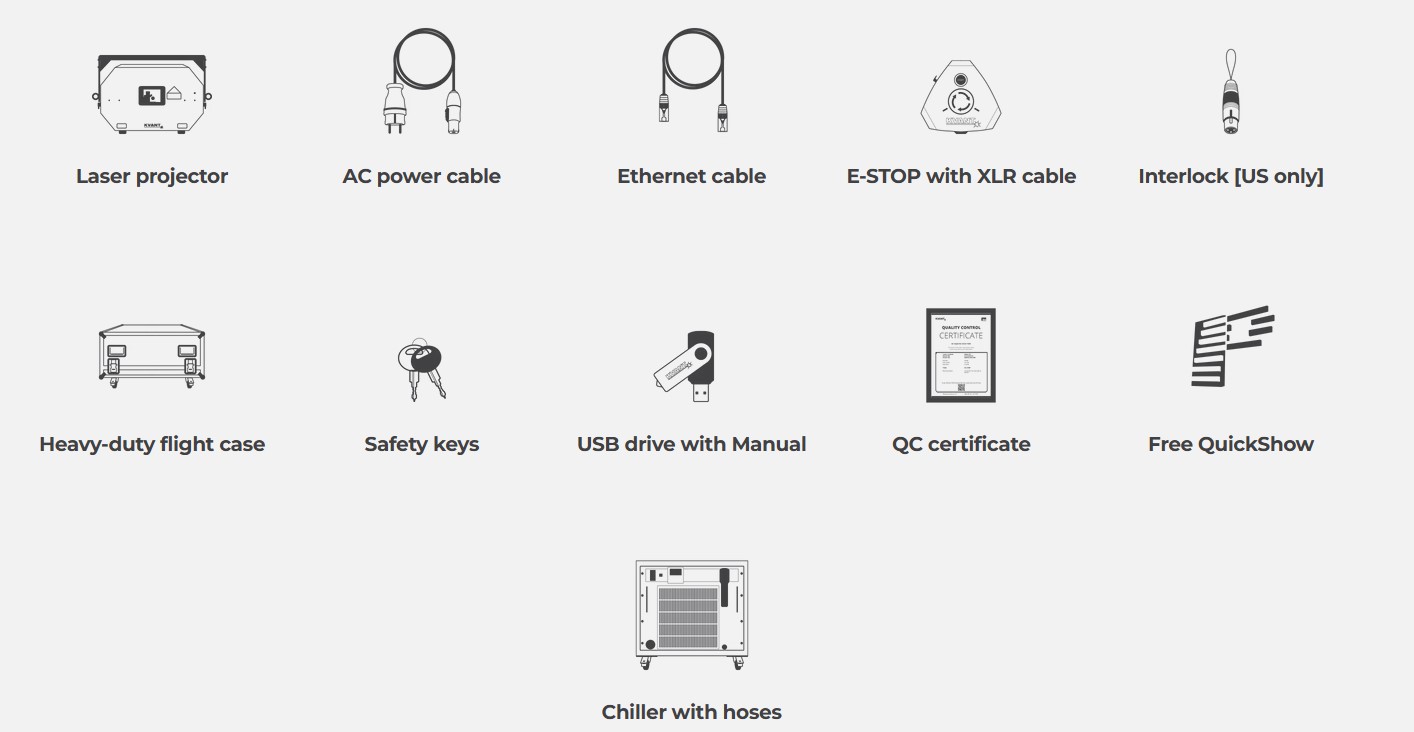

Chiller, 10M Water supply hoses, 2x Heavy-duty flight case, 10M AC power cable, 10M Ethernet rj45 signal cable, E-STOP Remote with 10M 3-pin XLR cable, Set of 2 safety keys, Interlock bypass dongle [supplied for the USA only], USB memory stick with the user manual, QC certificate.
Pangolin QuickShow laser control and creation software is available for FREE download.

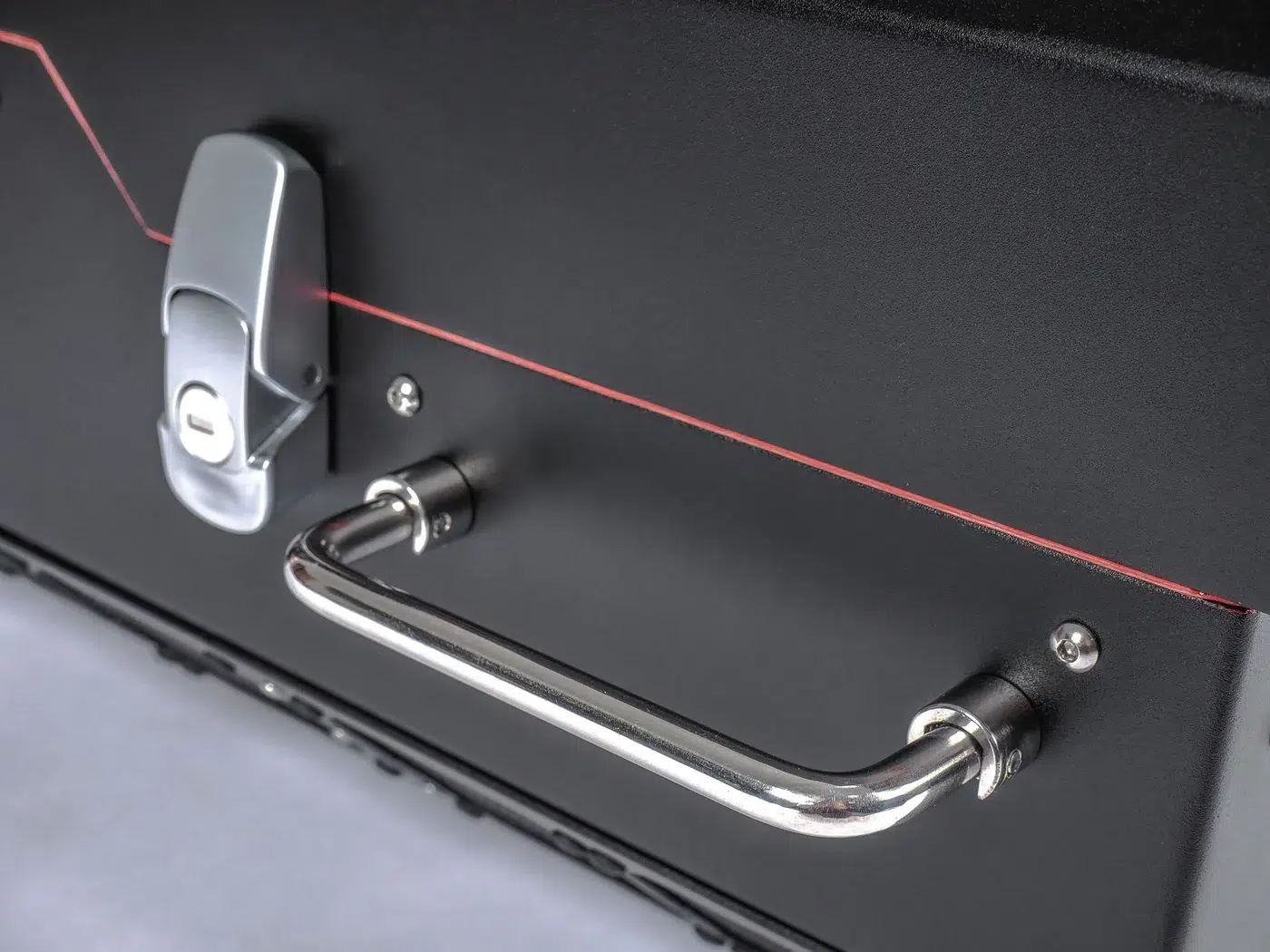

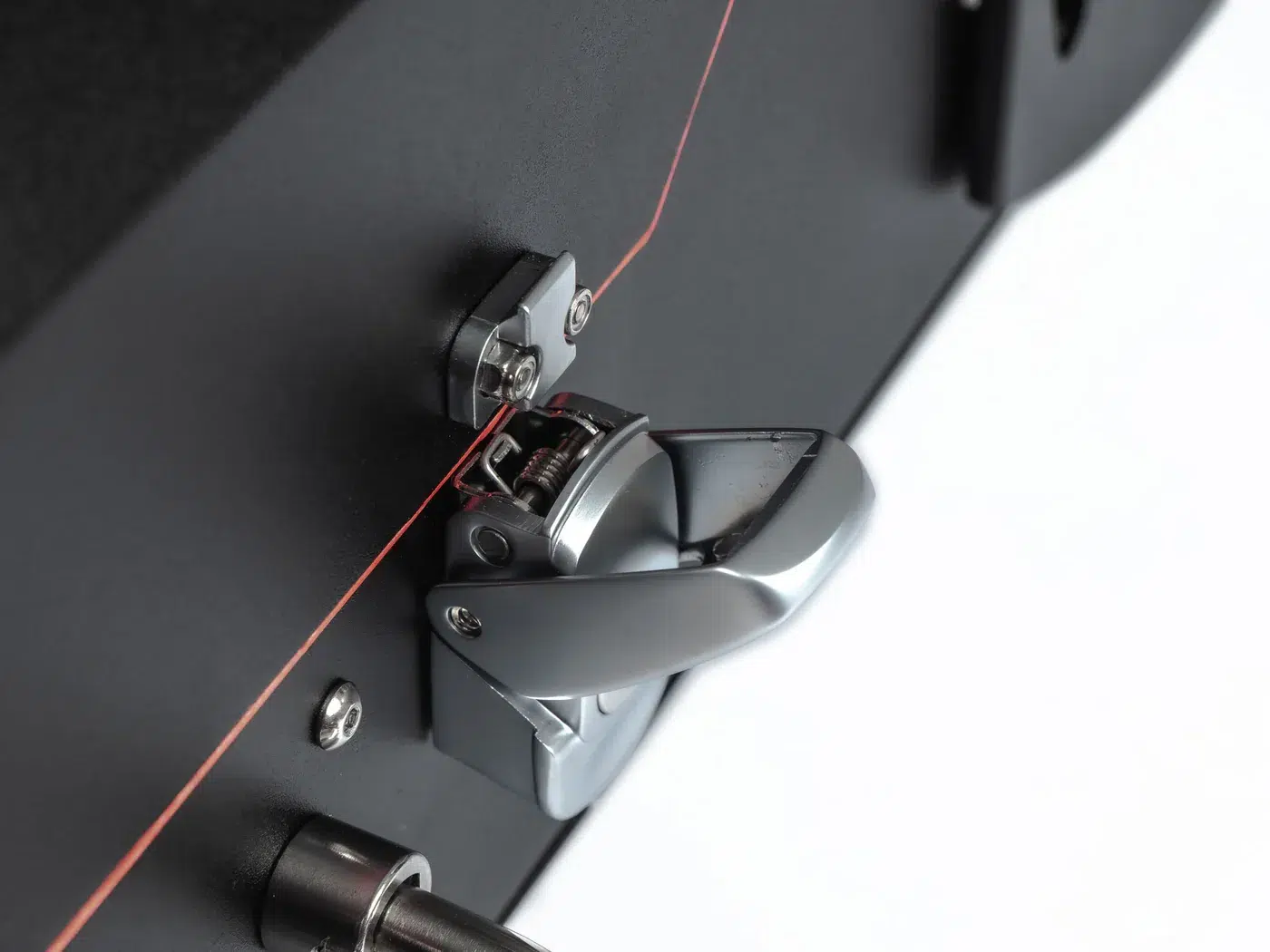

HW features:

Motorised Dichroic Filters.
All the basic system settings and adjustments such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc. are managed via the built-in FB4 control interface.
Scanning system overload protection.

Laser safety features:

Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button.

note A

Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn’t affect the total guaranteed power output of the system.

note B

The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as:
1. FWHM of the beam cross-section for round beams, or
2. The arithmetic average of the beam’s horizontal and vertical divergence for all rectangular beams.
