Product Name:

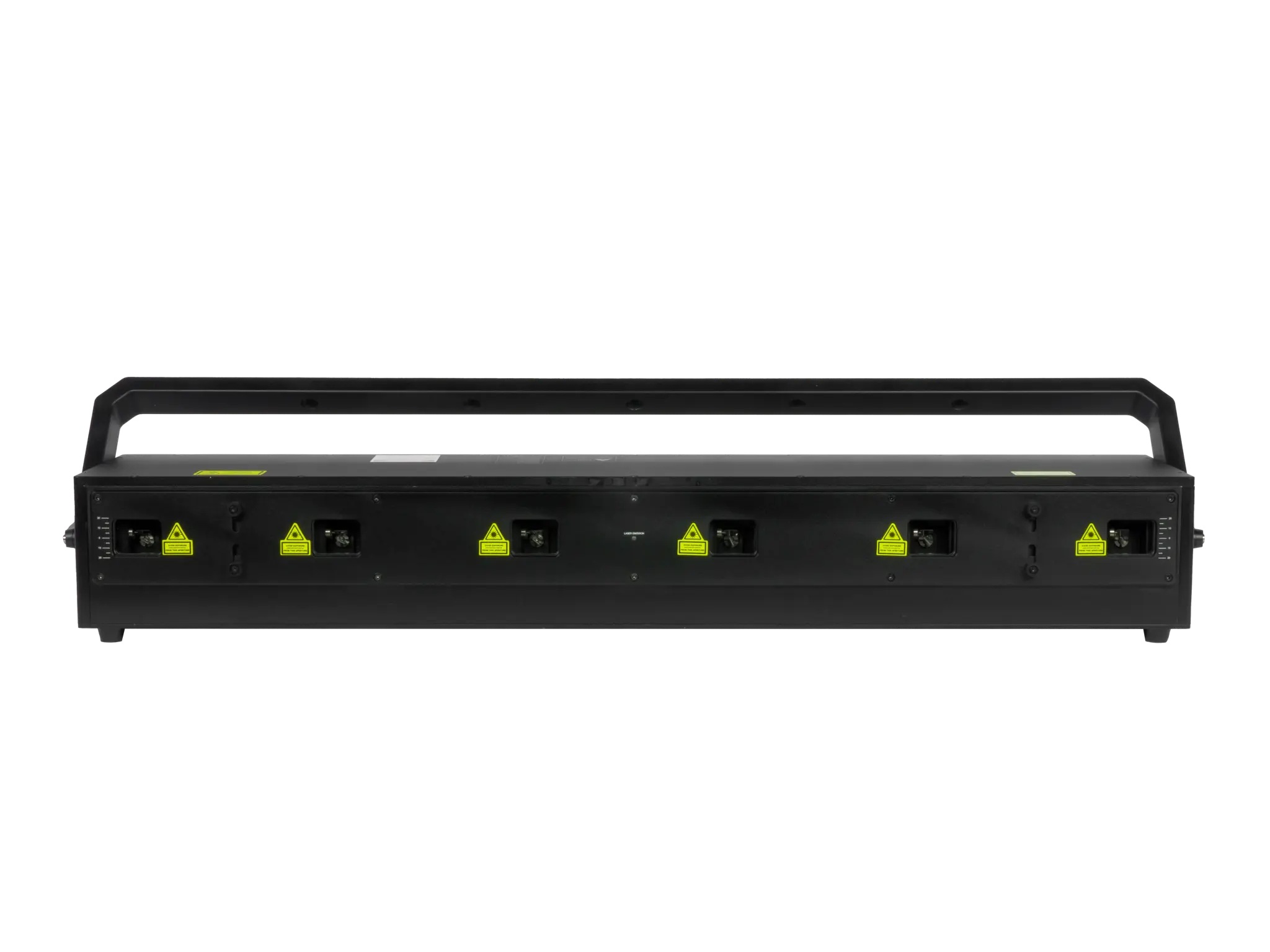

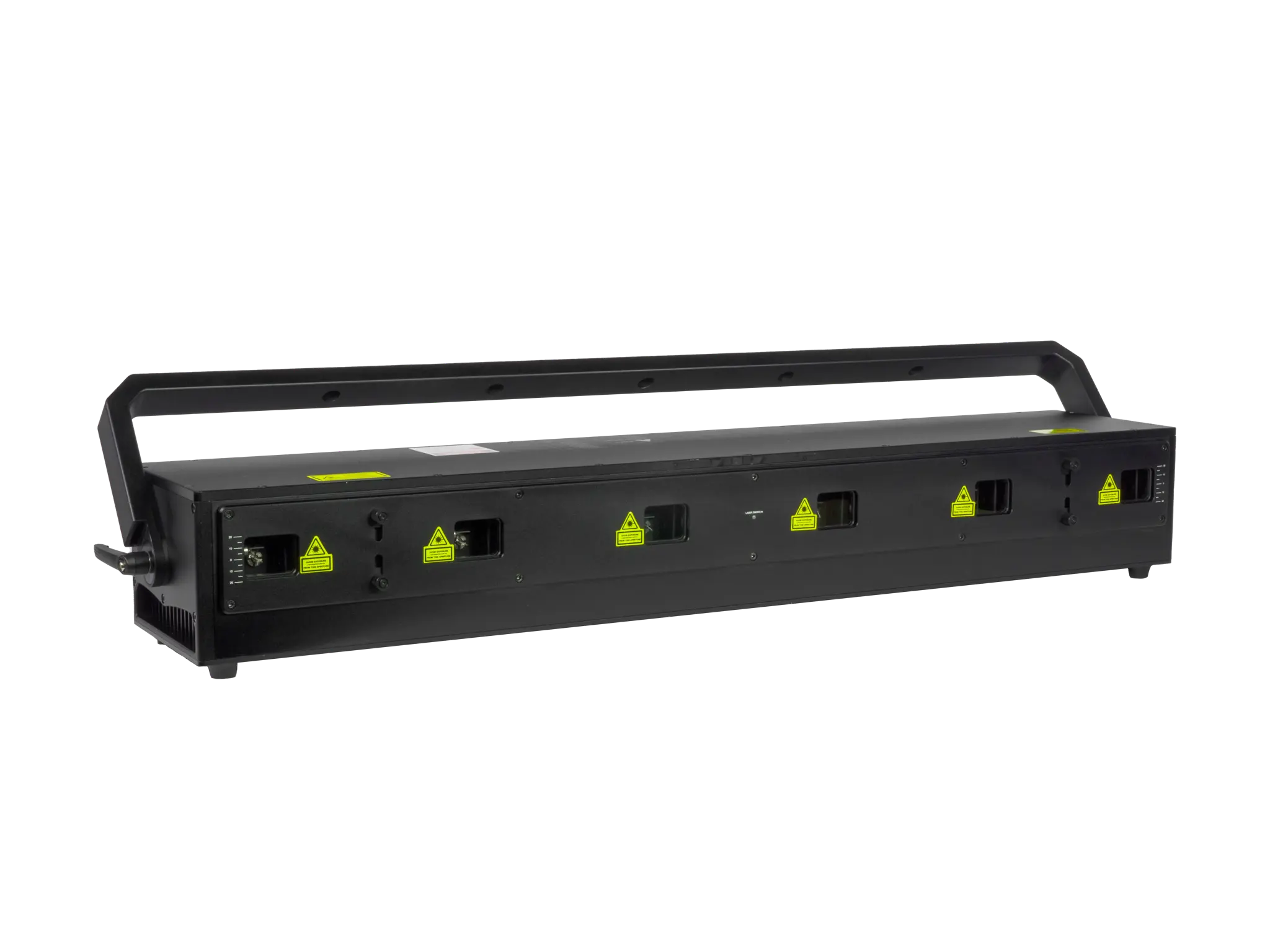

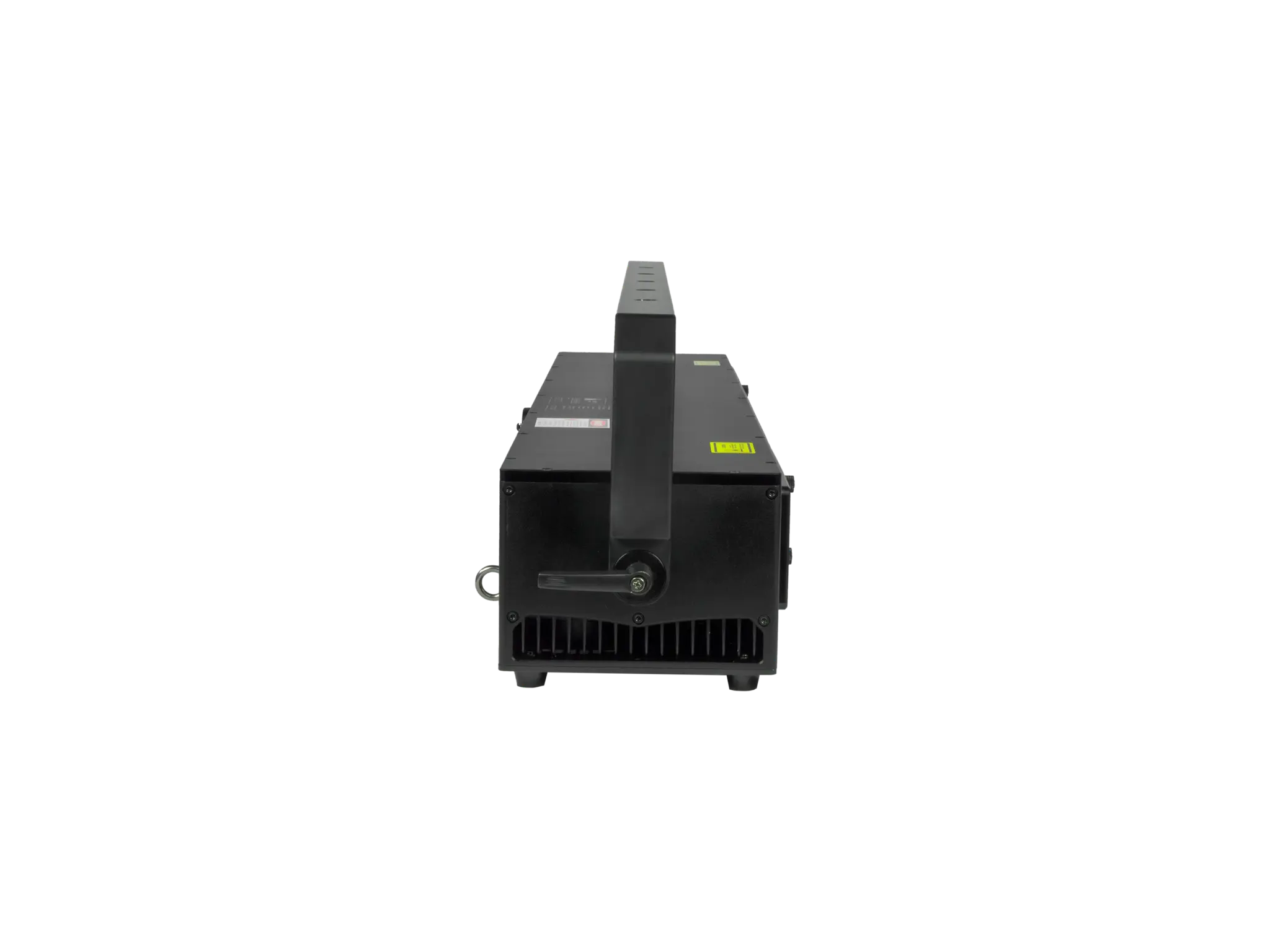

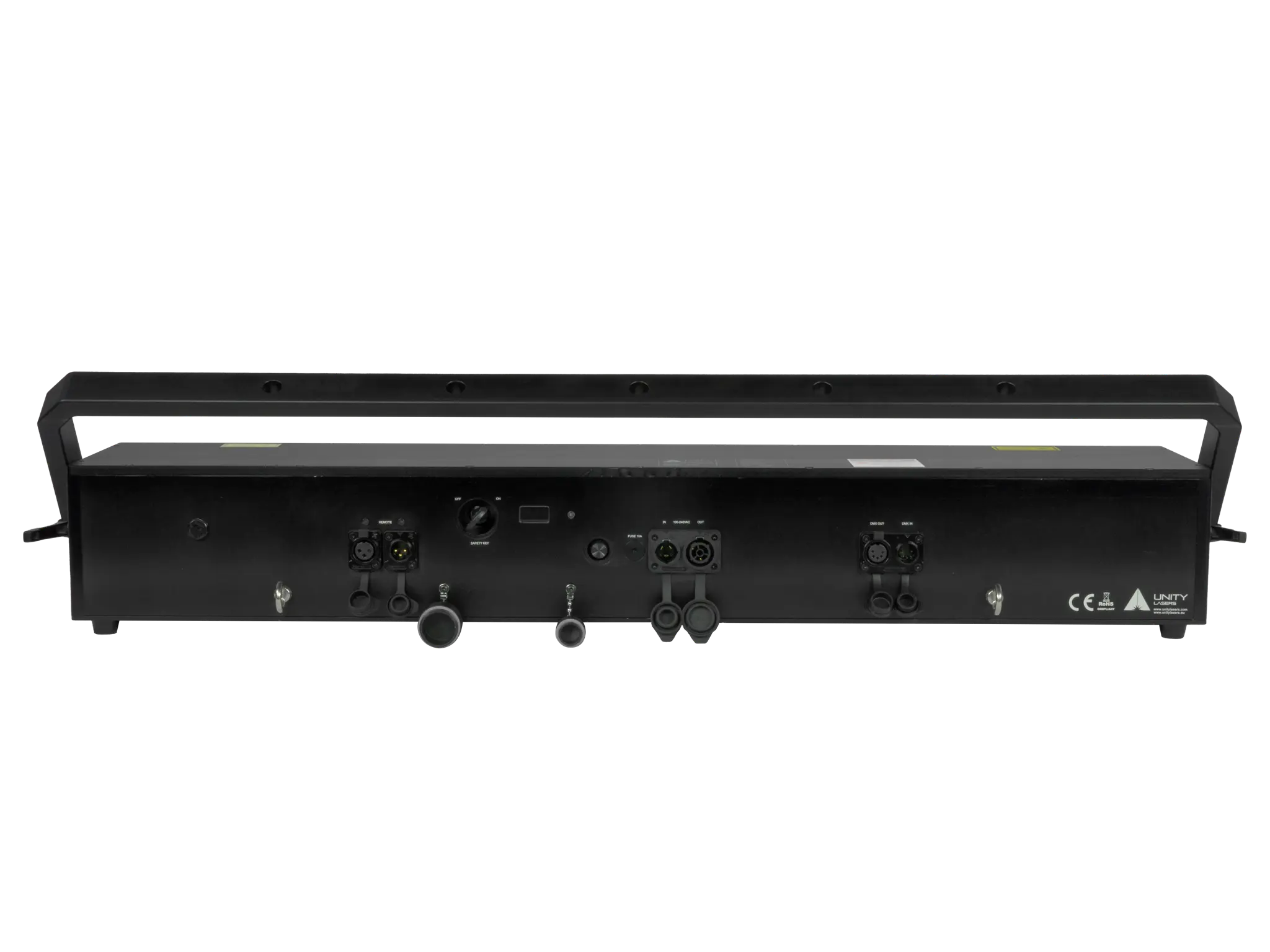

Unity LaserRay RGB (XY-IP65) – set of 2 units

Type Of Laser:
Full-colour, Semiconductor diode laser system with six independent XY scanning outputs

Guaranteed Optical Output:

13.2W (total) >2.2W (per single output)

Suitable For:
Lighting professionals: Stadiums, arenas, mega clubs, theaters, house of worship. Small and medium sized outdoor shows.

Control Signal:
DMX (35-channel assignment per each output)

Scanning System:
30,000 points per second @ 8°

Scan Angle:
45°

Safety:
Fully complies with the latest EN 60825-1 and FDA regulations

Weight:
24kg

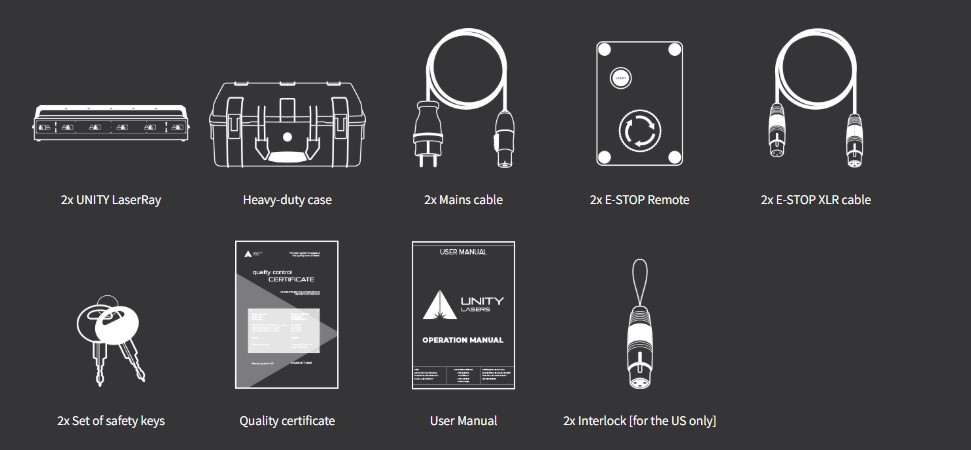

Package Includes:

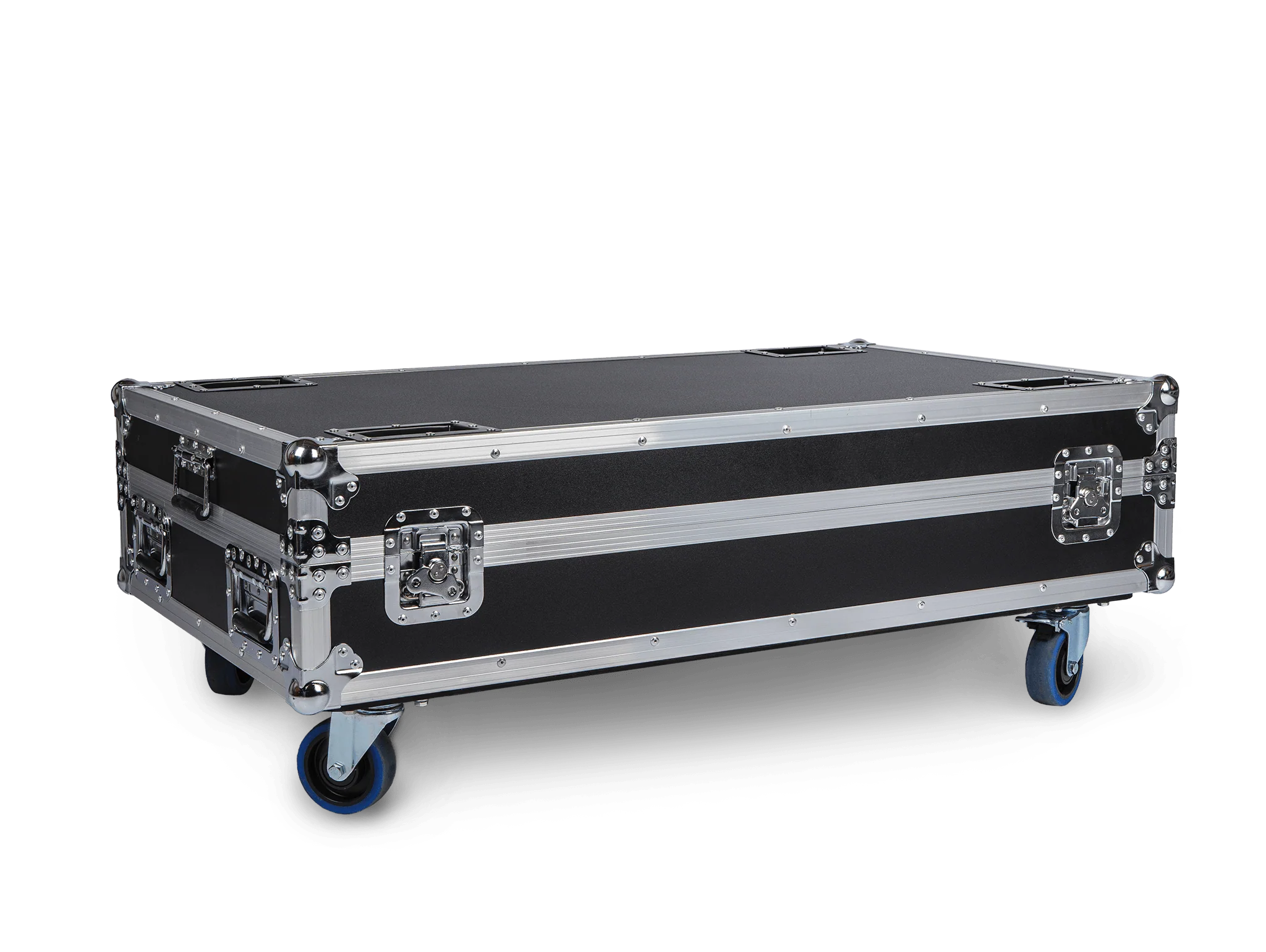

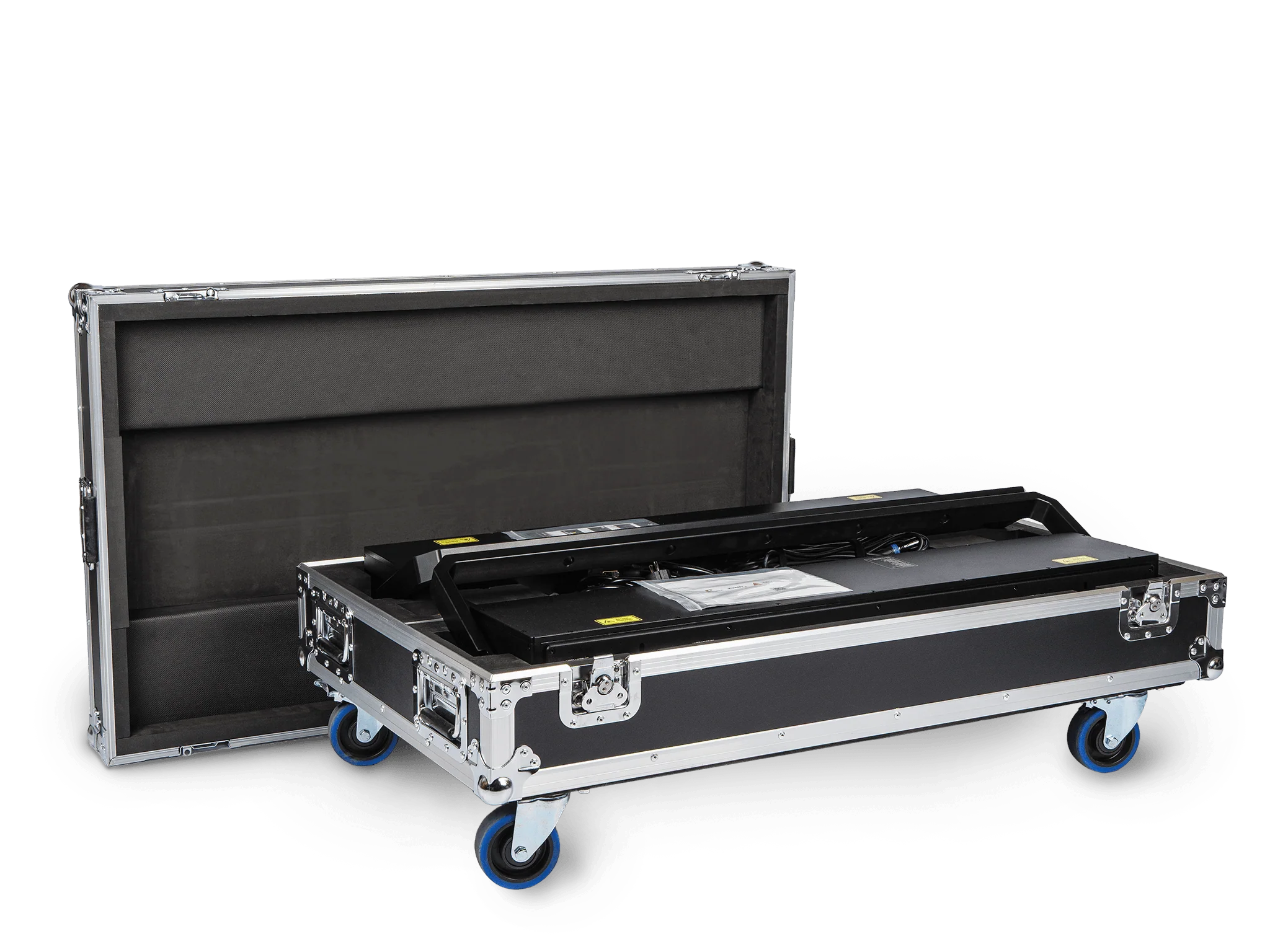

2x LaserRay 13 RGB (XY) laser system with IP65 rated housing, heavy duty flight case, 2x Estop box, 2x Estop cable (10M/30ft), 2x DMX cable (10M/30ft), 2x power cable (1.5M/4.5ft), 2x interlock, 4x keys, manual, quickstart guide, variance card (* 2x service dongle if outside US)

R | G | B [mW]:
600 | 800 | 800 (per output)

Beam Size [mm]:
3 x 3

Beam Divergence:
<1.4mrad [Full Angle]

Modulation:
Analog 100kHz

Power Requirements:
100-240V/50Hz

Consumption:
Max. 600W

Operation Temperature:
(-10°C) – 45°C

Ingress Rating:
IP65

System Features:
Adjustments are done via DMX from your lighting console for safety, zones, geometric correction, and colors.

Laser Safety Features:
Keyed interlock, Emission delay, Internal / Case interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate.

Notice:
*Due to Advanced Optical Correction technology used in our laser systems, each laser colour’s optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output

Dimensions [mm]:
Depth: 222 | Width: 998 | Height: 148
