Source | IP-rating | Type:

Semiconductor laser diode | IP65 | Full-colour RGB laser projector

Suitability:

Permanent outdoor laser displays [atmospheric, abstract, text, animations]

System control:

FB4-SK [Ethernet, ArtNet | PC, Lighting Console or Autoplay]

Compliant with:

EN 60825-1

Weight [kg]:

24

Size [WxHxD, mm]:

377 x 281 x 600 – excluding mounting bracket
377 x 447 x 726 – including mounting bracket

Guaranteed opt. output

22 watts

Installed modules R | G | B [W]:

6 | 8 | 10 *note A

Wavelengths [nm, ±5nm]:

638 | 525 | 445

Beam size [mm]:

5 x 7

Beam divergence [mrad]:

1.1 [full angle, averaged value, *note B]

Analogue modulation [kHz]

100

X-Y scanners:

Juno 5 | 30 kpps @ 8°, max. scanning angle 50° on both axes

Power requirements [V] | Input:

100-240/50-60Hz | Weipu connector

Max. power consumption [VA]:

1200

Operation temperature [°C]:

5-28

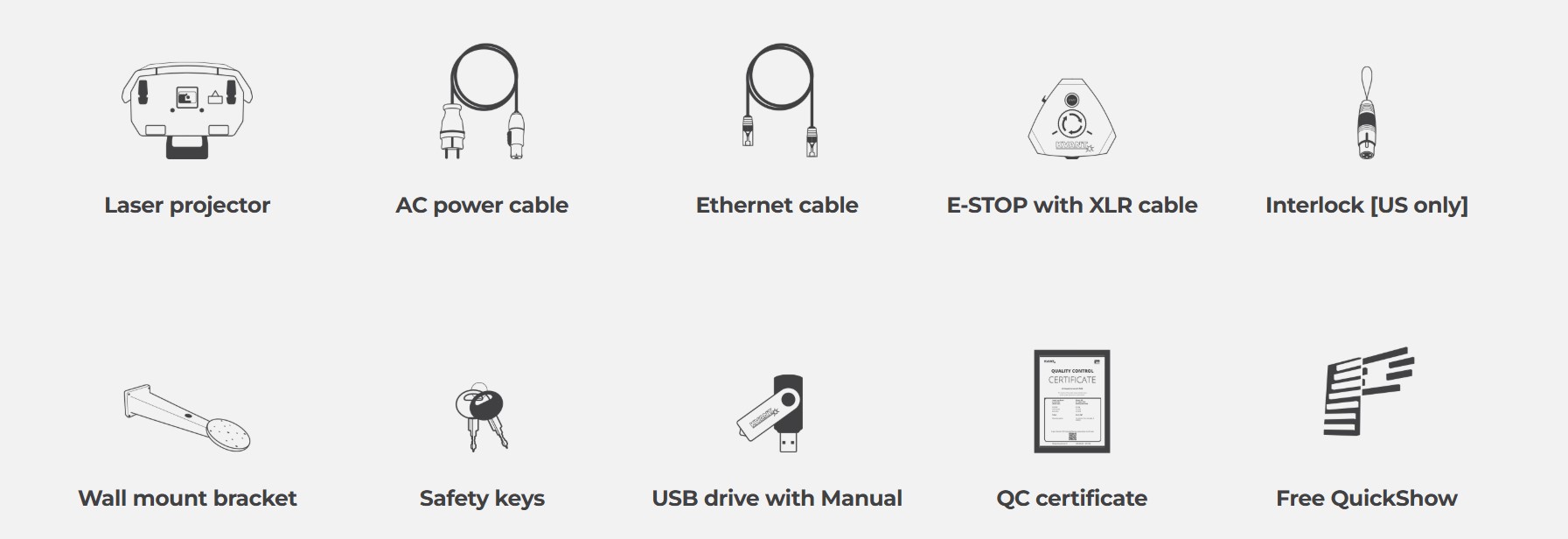

Included in the set:

Flat surface bracket and wall mount bracket with fixings, 5M AC power cable, 5M Ethernet rj45 signal cable, E-STOP Remote with 5M 3-pin XLR cable, Set of 2 keys for the lid and 2x E-STOP Remote keys, Interlock bypass dongle [supplied for the USA only], USB memory stick with the user manual, QC certificate.
Pangolin QuickShow laser control and creation software is available for FREE download.

HW features:

Motorised Dichroic Filters
All the basic system settings and adjustments such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc. are managed via the built-in FB4 control interface.
Scanning system overload protection.

Laser safety features:

Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plate, Emergency STOP system with keyed remote and manual RESTART button.

note A

Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn’t affect the total guaranteed power output of the system.

note B

The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as:
1. FWHM of the beam cross-section for round beams, or
2. The arithmetic average of the beam’s horizontal and vertical divergence for all rectangular beams.
