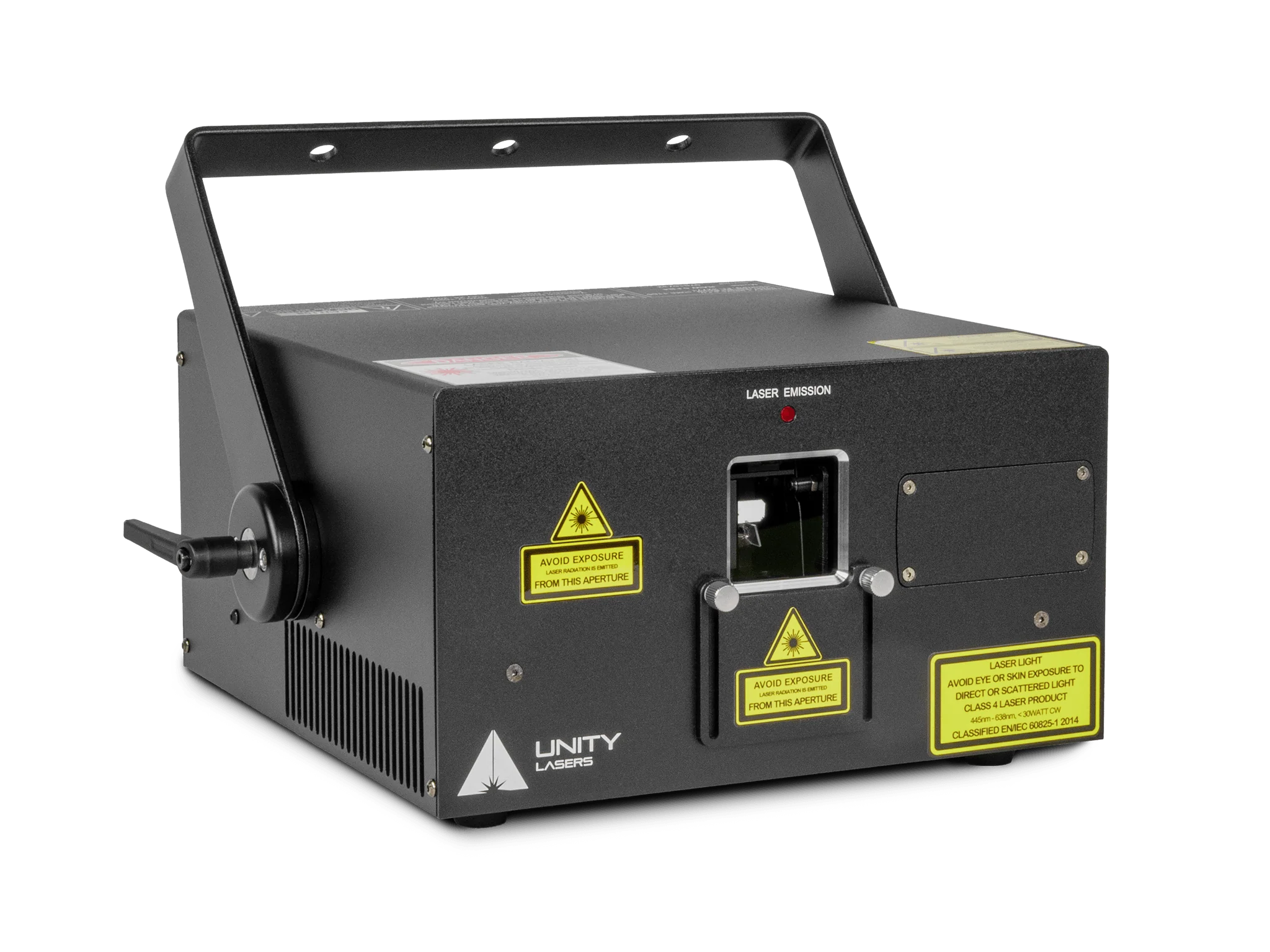

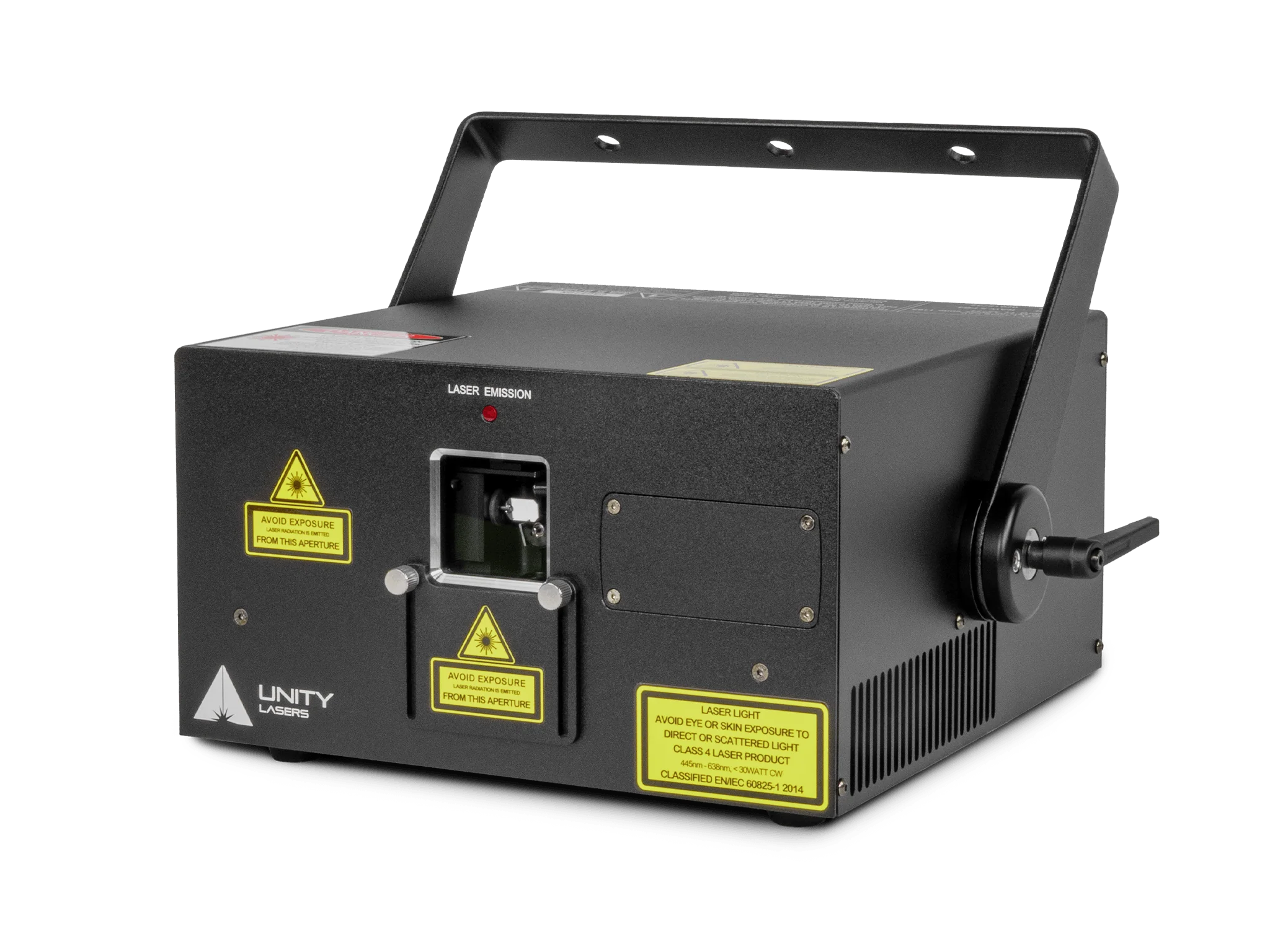

Product Name:
Unity RAW 5 FB4

Type Of Laser:
Full-colour, Semiconductor diode laser system

Guaranteed Optical Output:

5W

Suitable For:
Clubs, DJs, large indoor venues (up to 5,000 people), small outdoor shows. Beam show, text, graphic, and mapping capable

Control Signal:
Pangolin FB4 DMX [Ethernet, ArtNet, DMX, sACN, ILDA | PC, Lighting Console, Auto Mode, Mobile App: Apple, Android]

Scanning System:
30,000 points per second @ 8°

Scan Angle:
50°

Safety:
Fully complies with the latest EN 60825-1 and FDA regulations

Weight:
8kg

Package Includes:
Laser projector w/ FB4 DMX, protective case, Estop box, Estop cable (10M/30ft), ethernet cable (10M/30ft), power cable (1.5M/4.5ft), interlock (* service dongle if outside US), keys, manual, quickstart guide, variance card

R | G | B [mW]:
1,200 | 1,000 | 2,800

Beam Size [mm]:
5 x 3

Beam Divergence:
<1.1mrad [Full Angle]

Modulation:
Analog 50kHz

Power Requirements:
100-240V/50Hz

Consumption:
Max. 150W

Operation Temperature:
10-40 °C

Ingress Rating:
IP4X

System Features:

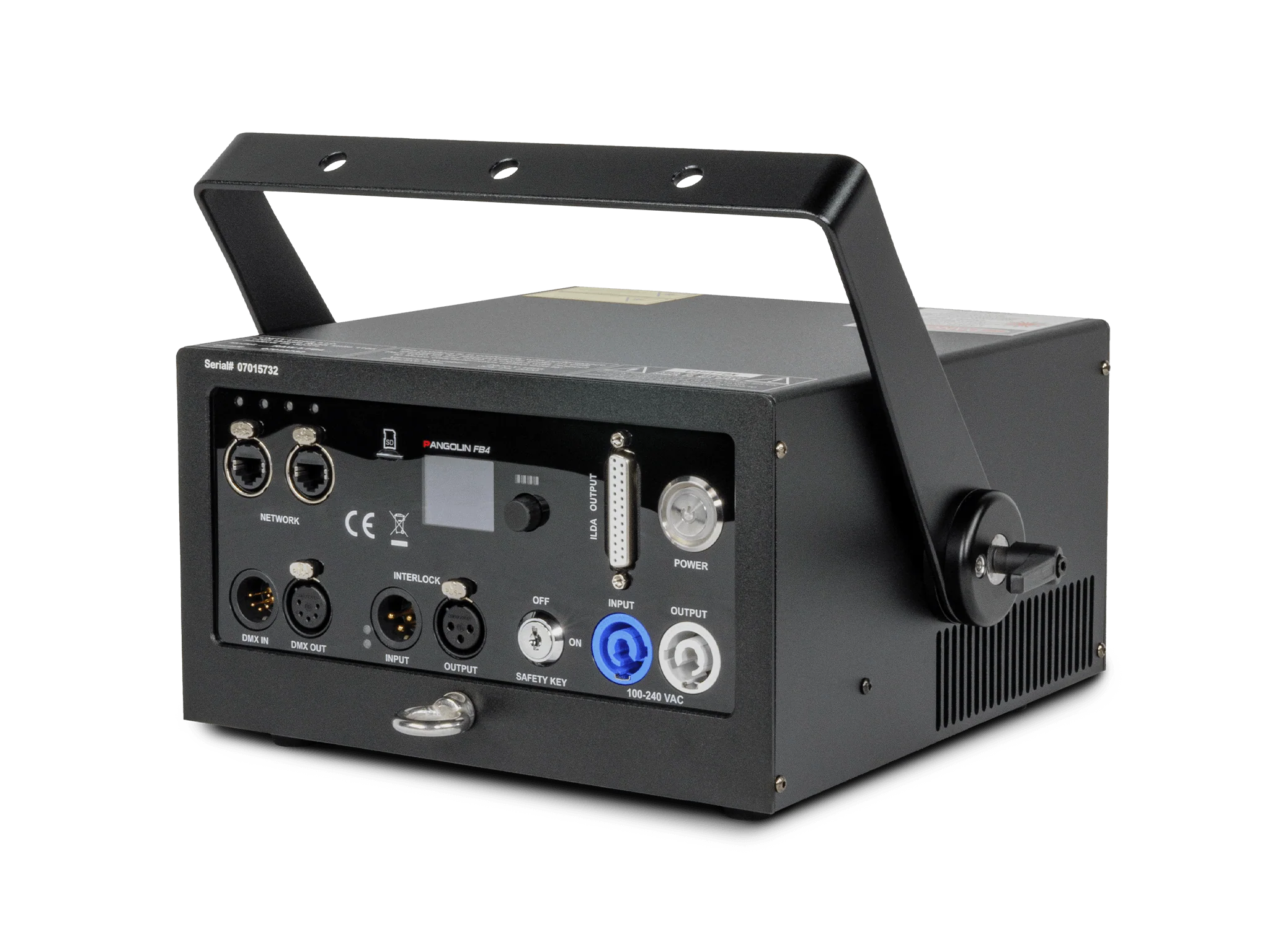

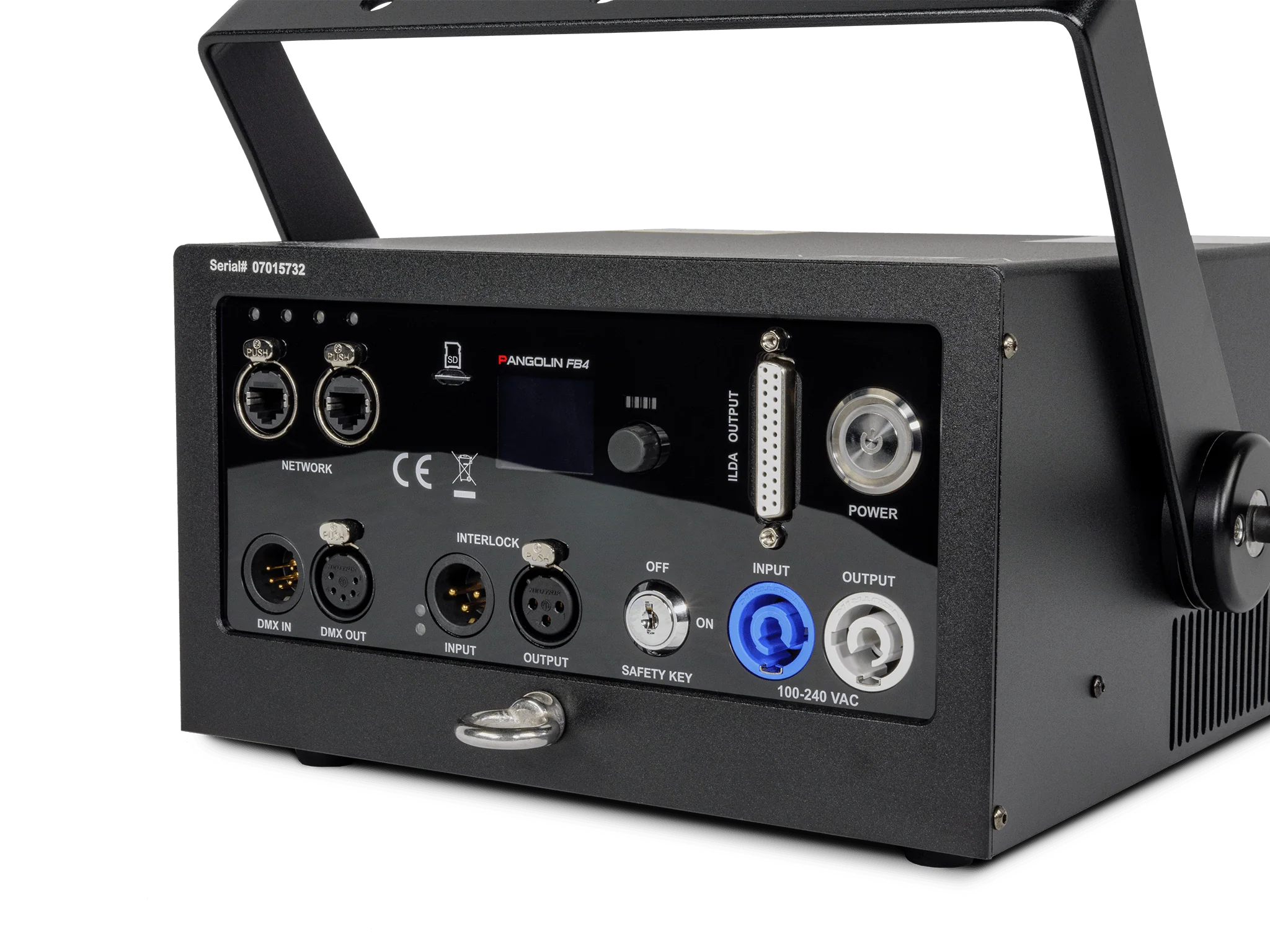

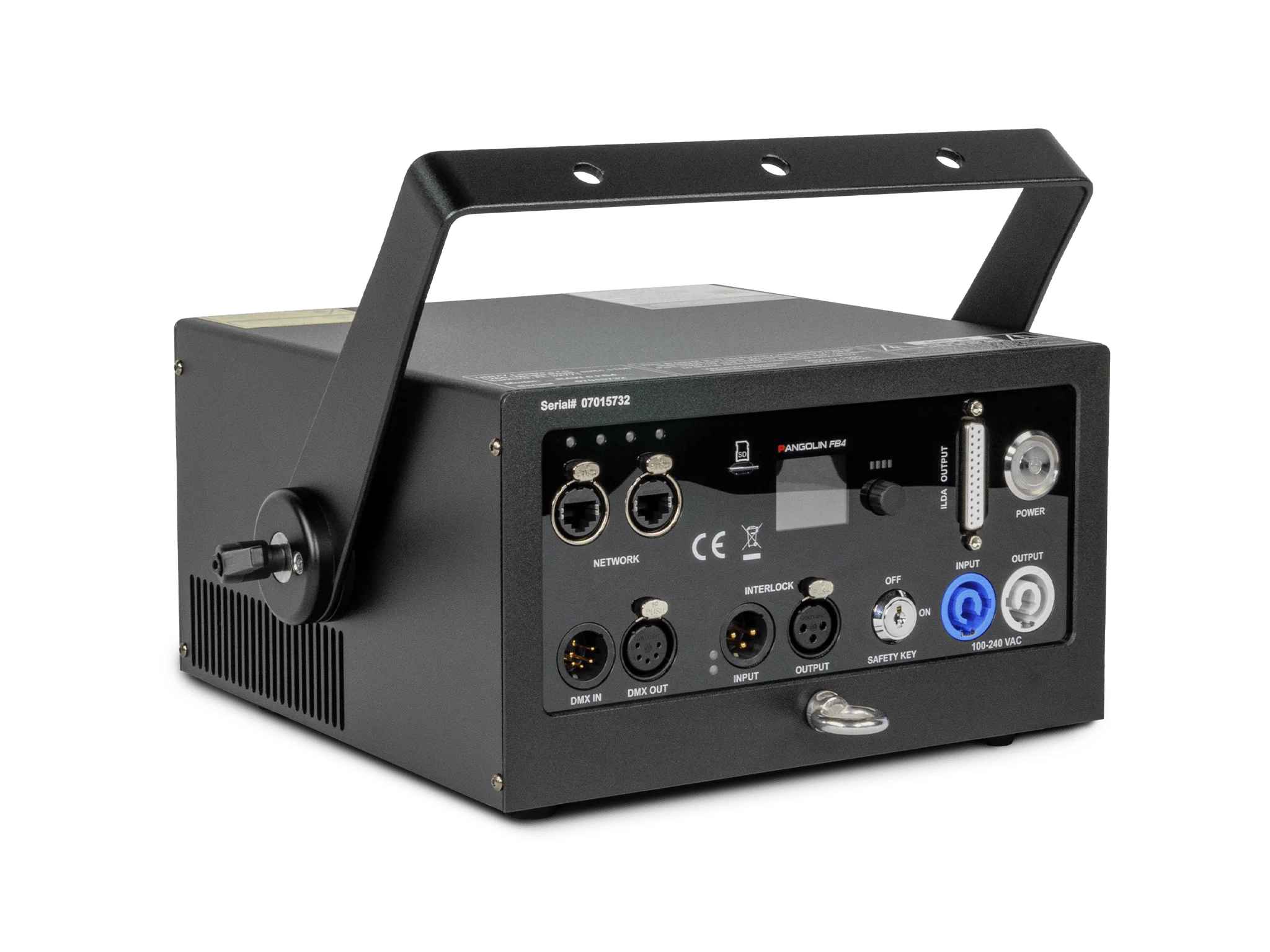

All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in, power in/out, DMX in/out, Estop in/out, ILDA in.

Laser Safety Features:
Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate

Notice:
*Due to Advanced Optical Correction technology used in our laser systems, each laser colour’s optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output

Dimensions [mm]:
Depth: 252 | Width: 247 | Height: 148
