Product Name:

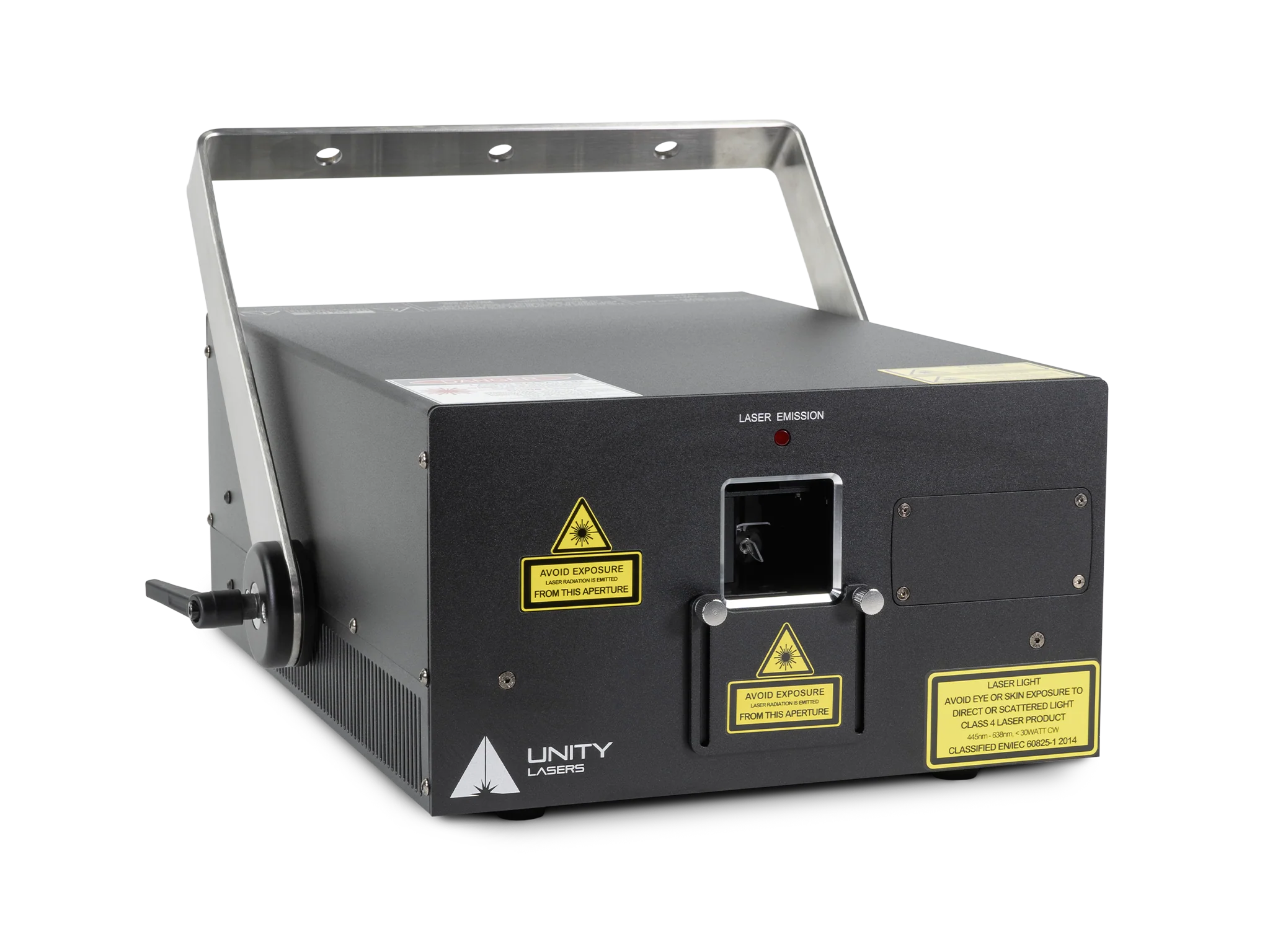

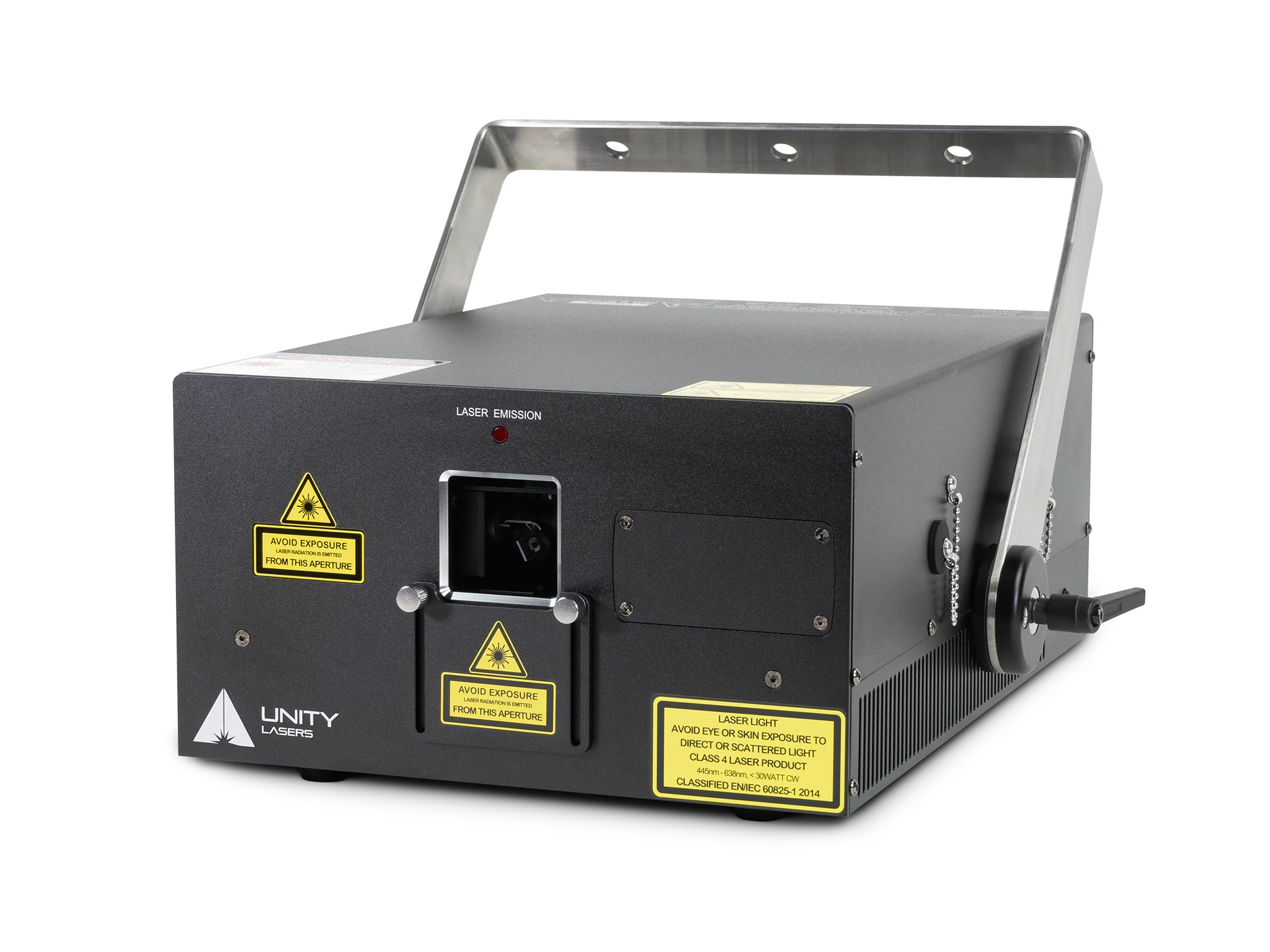

Unity RAW 10 (DMX+ILDA)

Type Of Laser:
Full-colour, Semiconductor diode laser system

Guaranteed Optical Output:

10W

Suitable For:
Clubs, DJs, large indoor venues (over 5,000 people), medium sized outdoor shows. Beam show, text, graphic, and mapping capable

Control Signal:
DMX mode, sound active mode, and ILDA mode (we recommend Pangolin FB3QS and QuickShow for ILDA control)

Scanning System:
30,000 points per second @ 8°

Scan Angle:
50°

Safety:
Fully complies with the latest EN 60825-1 and FDA regulations

Weight:
12kg

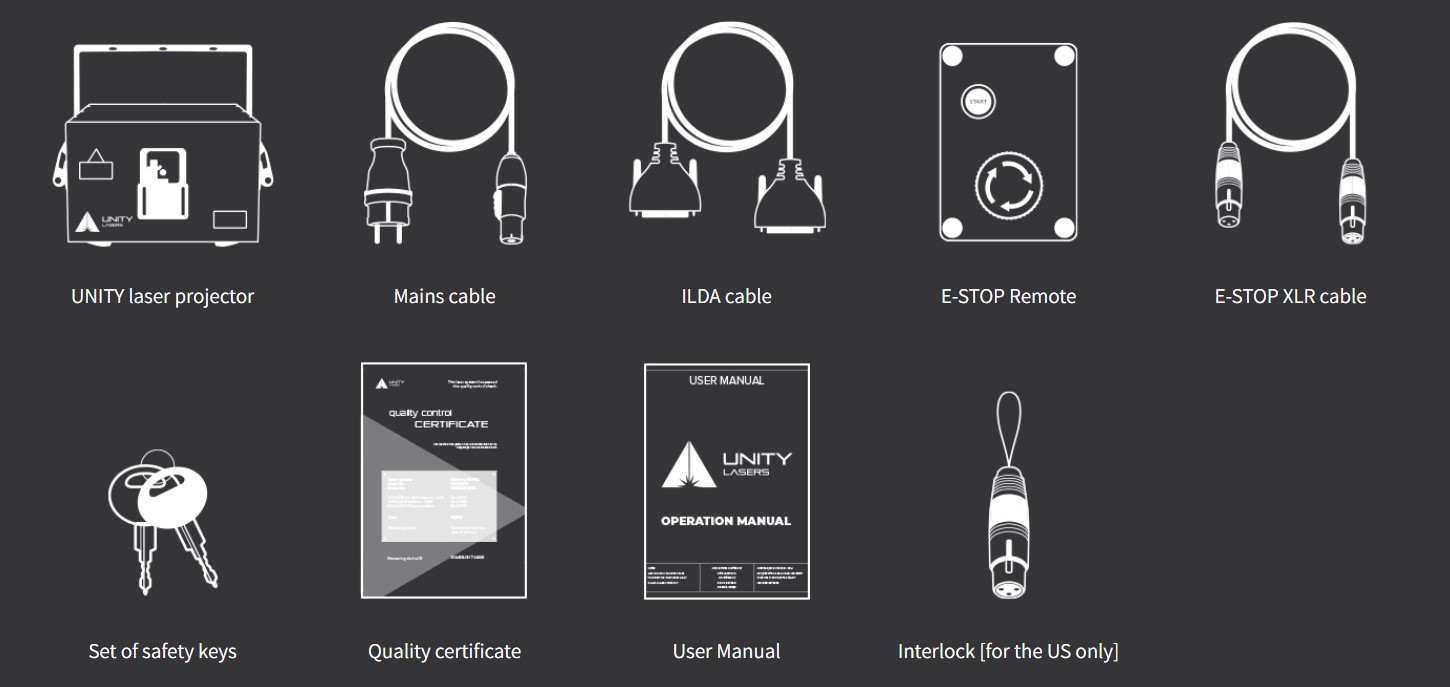

Package Includes:
Laser projector, Estop box, Estop cable (10M/30ft), ILDA cable (10M/30ft), power cable (1.5M/4.5ft), interlock (* service dongle if outside US), keys, manual, quickstart guide, variance card, carton packaging

R | G | B [mW]:
2,700 | 2,700 | 4,800

Beam Size [mm]:
5 x 3

Beam Divergence:
<1.1mrad [Full Angle]

Modulation:
Analog 50kHz

Power Requirements:
100-240V/50Hz

Consumption:
Max. 350W

Operation Temperature:
10-40 °C

Ingress Rating:
IP4X

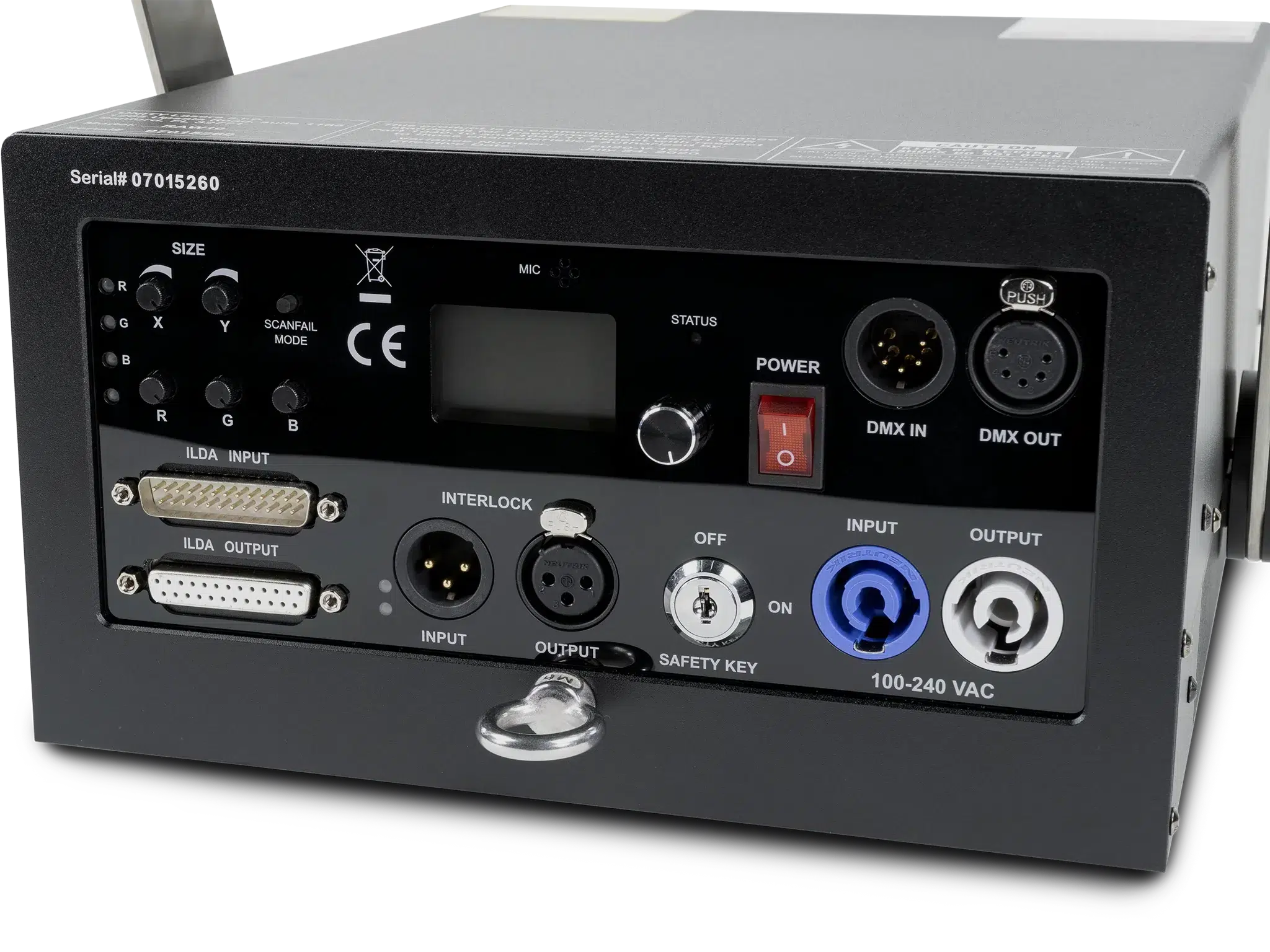

System Features:
Adjustments for color channels (R,G,B), size/position/invert (X,Y), DMX in/out, ILDA in/out, Estop in/out, power in/out, sound active mode, digital display for DMX address and settings

Laser Safety Features:
Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate

Notice:
*Due to Advanced Optical Correction technology used in our laser systems, each laser colour’s optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output

Dimensions [mm]:
Depth: 340 | Width: 247 | Height: 148
